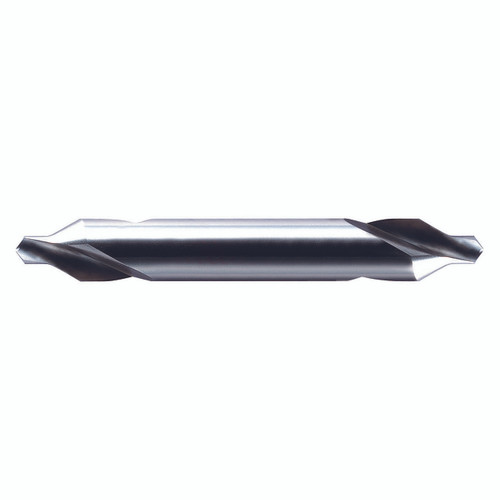

YG1 D1C90100 | #5 Size x 0.1875" Diameter x 0.4375" Shank x 5.0000" OAL 60 Degree Point Angle 2 Flute Bright Coated HSS (M2) Combination Drill & Countersink

$21.18 $15.25
(You save $5.93)
Brand:
YG1
Drill Point Diameter (Inch):
3/16"
Drill Point Diameter (Decimal Inch):
0.1875"
Drill Point Diameter (mm):
4.76mm
Body Diameter (Inch):
7/16"
Body Diameter (Decimal Inch):
0.4375"
Body Diameter (mm):
11.11mm
Trade Size:
#5
Included Angle:
60 Degree
Material:
HSS (M2)
Finish/Coating:
Bright
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
10027529
UPC:
Weight:
0.19 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberD1C90100
Center Drill Size#5
Pilot Length (Decimal Inch)0.1875"
Pilot Length (Inch)3/16"
Pilot Length (mm)4.76mm
Pilot Diameter (Decimal Inch)0.1875"
Pilot Diameter (Inch)3/16"
Pilot Diameter (mm)4.76mm
Shank Diameter (Decimal Inch)0.4375"
Shank Diameter (Inch)7/16"
Shank Diameter (mm)11.11mm
Overall Length (Decimal Inch)5.0000"
Overall Length (Inch)5"
Overall Length (mm)127.00mm
Point Length (Decimal Inch)0.0541"
Point Length (mm)1.37mm
Point Angle120 Degree
Center Angle (Degree)60 Degree
Number of Flutes2
SeriesD1C90
Shank Toleranceh8
Coolant ThroughNo
CoatingBright
MaterialHSS (M2)
Hole Tolerancek12
ApplicationP
Cutting DirectionRight Hand
Length TypeLong
Product TypeCombination Drill & Countersink
