| Manufacturer Part Number | D1C90142 |
| Center Drill Size | #2 |
| Pilot Length (Decimal Inch) | 0.0781" |
| Pilot Length (Inch) | 5/64" |
| Pilot Length (mm) | 1.98mm |
| Pilot Diameter (Decimal Inch) | 0.0781" |
| Pilot Diameter (Inch) | 5/64" |
| Pilot Diameter (mm) | 1.98mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Overall Length (Decimal Inch) | 1.8750" |
| Overall Length (Inch) | 1-7/8" |
| Overall Length (mm) | 47.63mm |
| Point Length (Decimal Inch) | 0.0226" |
| Point Length (mm) | 0.57mm |
| Point Angle | 120 Degree |
| Center Angle (Degree) | 60 Degree |
| Number of Flutes | 2 |
| Series | D1C90 |
| Shank Tolerance | h8 |
| Coolant Through | No |
| Coating | Bright |
| Material | HSS (M2) |
| Hole Tolerance | k12 |
| Application | P |
| Cutting Direction | Right Hand |
| Length Type | Regular |

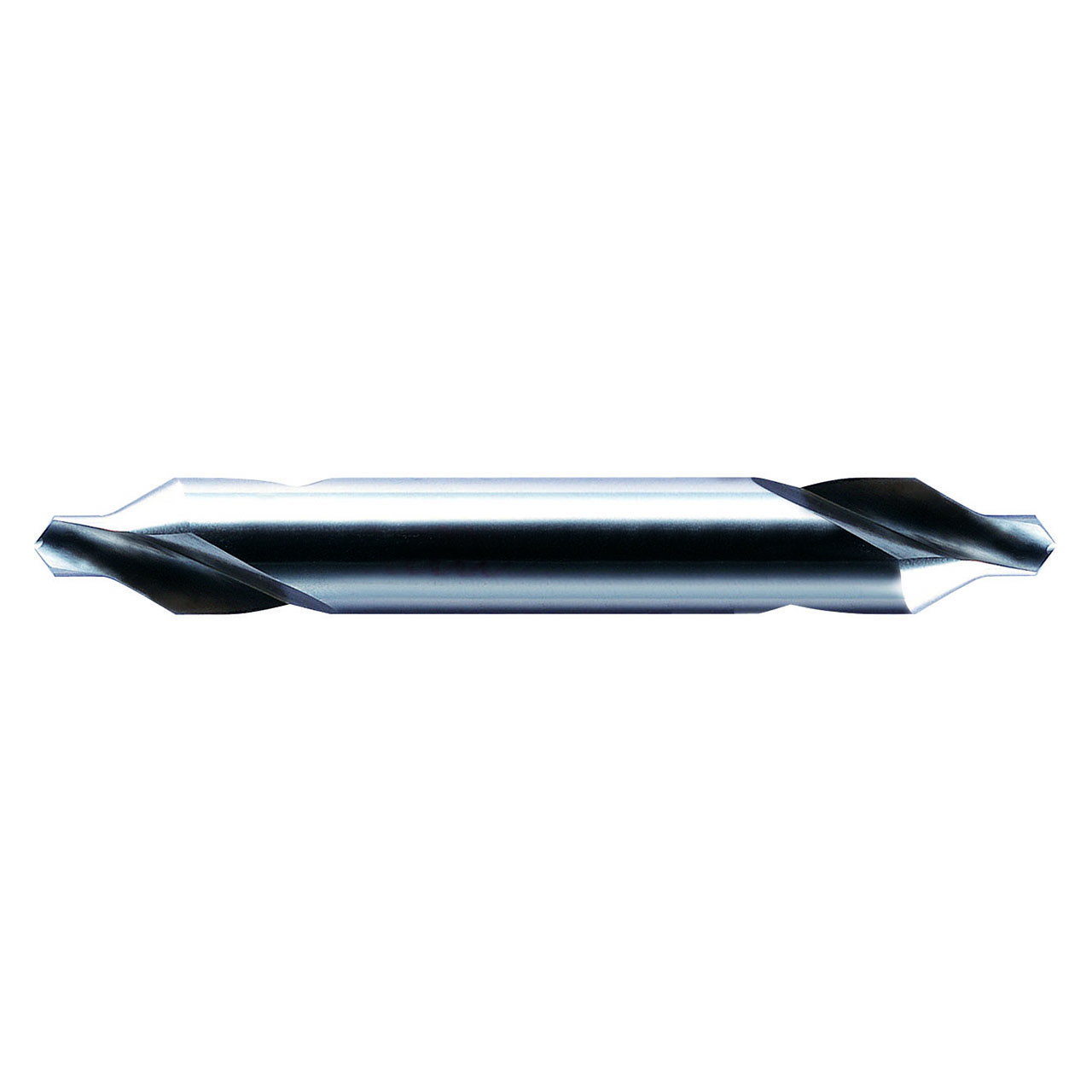

| Product Type | Combination Drill & Countersink |
