Product Specifications
| # Manufacturer Number | THR01485 |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (mm) | 9.53mm |
| Pitch | 16 TPI |
| Size | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3810" |
| Shank Diameter (mm) | 9.68mm |
| Overall Length (Decimal Inch) | 2.9400" |
| Overall Length (mm) | 74.70mm |
| Thread Length (Decimal Inch) | 0.9800" |
| Thread Length (mm) | 24.89mm |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.18mm |
| Square Size (Decimal Inch) | 0.2860" |
| Square Size (mm) | 7.26mm |
| Drill Size (Decimal Inch) | 0.3474" |
| Drill Size (mm) | 8.82mm |
| Number of Lobes | 4 |
| Number of Grooves | 1 |
| Length Diameter | 3.0 x D |
| Shank Type | Square |
| Coating | TICN |
| Material | HSS |
| Thread Series | UNC |
| Series | THR01 |

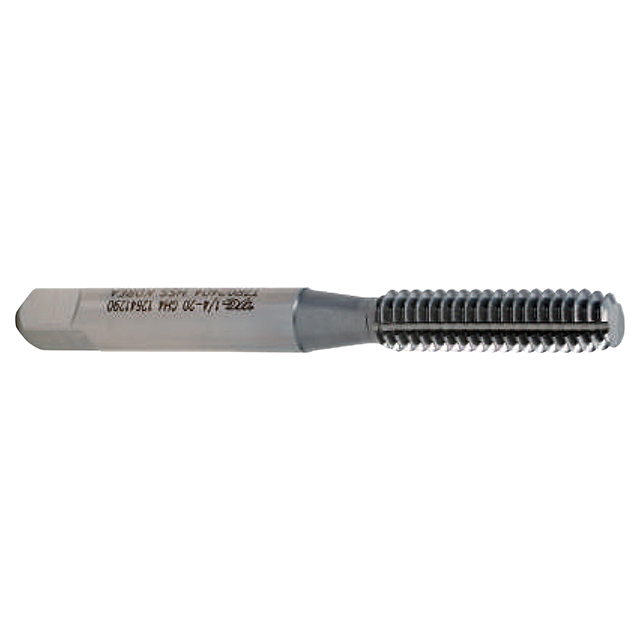

| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
3/8"
Thread Size (Decimal Inch):
0.3750"
Thread Size (mm):
9.53mm
Finish/Coating:
TICN
Material:
HSS
