Product Specifications
| Diameter (Decimal Inch) | TTS62244 |
| Diameter (Decimal Inch) | 0.1575" |
| Diameter (mm) | 4.00mm |
| Overall Length (Decimal Inch) | 2.1300" |
| Overall Length (mm) | 54.10mm |
| Thread Length (Decimal Inch) | 0.2760" |
| Thread Length (mm) | 7.01" |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.1680" |
| Shank Diameter (mm) | 0.1310" |
| Square Size (Decimal Inch) | 0.1310" |
| Square Size (mm) | 3.33mm |
| Neck Diameter (Decimal Inch) | 0.1190" |
| Neck Diameter (mm) | 3.02mm |
| Drill Size (Decimal Inch) | 0.1324" |
| Drill Size (mm) | 3.36mm |
| Useable (Decimal Inch) | 0.7680" |
| Useable (mm) | 19.51mm |
| Neck Length (Decimal Inch) | 0.7680" |
| Neck Length (mm) | 19.51mm |
| Neck Length (mm) | SPPT |
| Number of Flutes | 3 |
| Size | M4 |
| Pitch | 0.7 TPI |
| Thread Series | M |
| Pitch Limit | D4 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Coating | TIN |
| Material | HSS-PM |
| Blank Standard | 302A |
| Helix Angle | 45 Degree |
| Coolant Through | No |

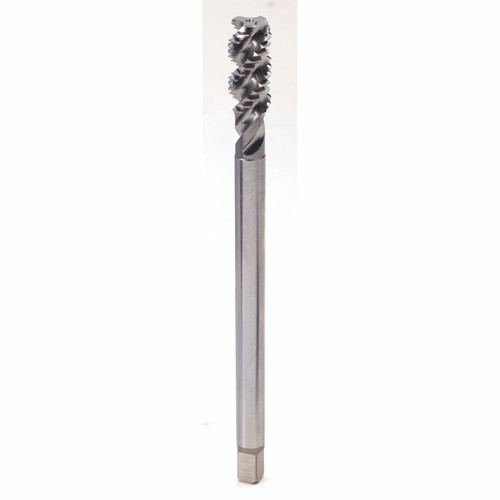

| Product Type | Spiral Point Tap |
