Product Specifications

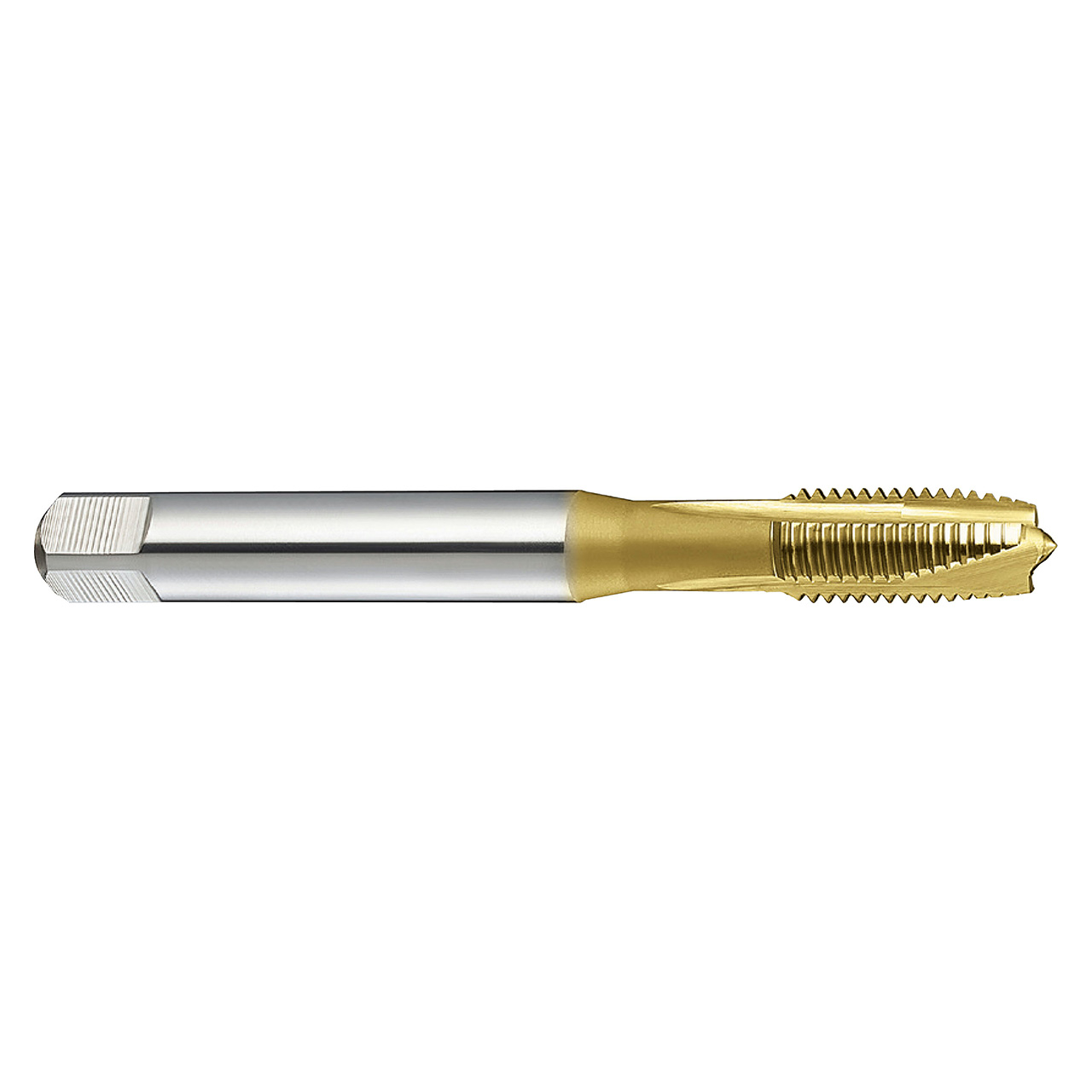

| Manufacturer Part Number | TTS66302 |
| Diameter (Decimal Inch) | 0.1640" |
| Diameter (mm) | 4.17mm |
| Overall Length (Decimal Inch) | 2.1300" |
| Overall Length (mm) | 54.10mm |
| Thread Length (Decimal Inch) | 0.2780" |
| Thread Length (mm) | 7.06" |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.1680" |
| Shank Diameter (mm) | 0.1310" |
| Square Size (Decimal Inch) | 0.1310" |
| Square Size (mm) | 3.33mm |
| Neck Diameter (Decimal Inch) | 0.1200" |
| Neck Diameter (mm) | 3.05mm |
| Drill Size (Decimal Inch) | 0.1387" |
| Drill Size (mm) | 3.52mm |
| Useable (Decimal Inch) | 0.7520" |
| Useable (mm) | 19.10mm |
| Neck Length (Decimal Inch) | 0.7520" |
| Neck Length (mm) | 19.10mm |
| Neck Length (mm) | SPPT |
| Number of Flutes | 3 |
| Size | #8 |
| Pitch | 36 TPI |
| Thread Series | UNF |
| Pitch Limit | H2 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Coating | TIN |
| Material | HSS-PM |
| Blank Standard | 302A |
| Helix Angle | 45 Degree |
| Coolant Through | No |
| Product Type | Spiral Point Tap |
