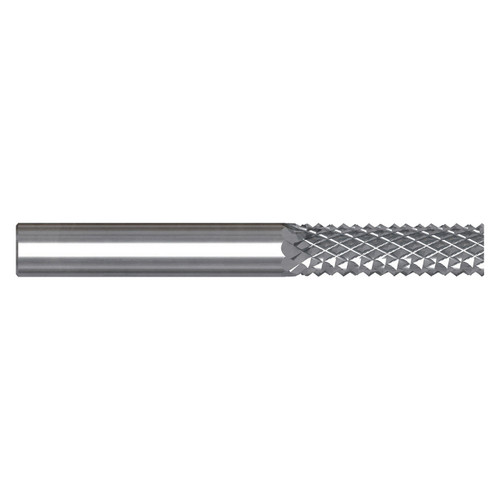

CFRP&GFRP specially designed routers YG-1 special CVD coating.
Product Specifications
| Manufacturer Part Number | URT5A2AJ0300 |
| Mill Diameter (Inch) | 2/17" |
| Mill Diameter (Decimal Inch) | 0.1181" |
| Mill Diameter (mm) | 3.00mm |
| Shank Diameter (Inch) | 2/17" |
| Shank Diameter (Decimal Inch) | 0.1181" |
| Shank Diameter(mm) | 3.00mm |
| Length of Cut (Inch) | 28/79" |
| Length of Cut (Decimal Inch) | 0.3543" |
| Length of Cut (mm) | 9.00mm |
| Overall Length (Inch) | 1-31/32" |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall Length (mm) | 50.00mm |
| Number of Flutes | Multi Flute |
| Series | URT5A2AJ |
| Material | Micro Grain Carbide |
| Coating | Diamond |
| Shank Type | Plain |
| Application | CFRP,GFRP |
| Machine | CNC Gantry,Robot End-Effectors |
| Operation | Milling |
| End Type | No End Cuts |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
