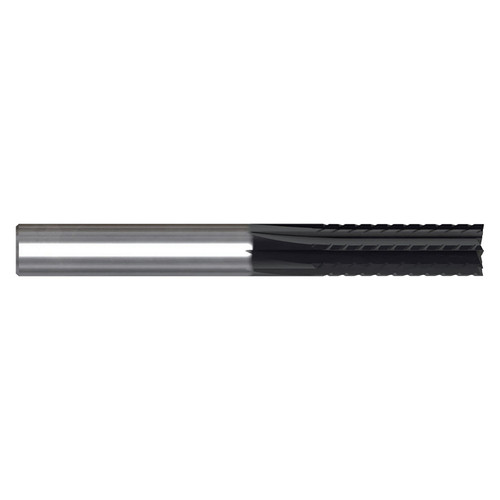

YG1 URT5P2AE0300 | 0.1181" Diameter x 0.1181" Shank x 1.9685" OAL 4 Flute Diamond Coated Micro Grain Carbide Straight Router Bit

$131.07 $88.48
(You save $42.59)
Brand:
YG1
Cutting Diameter (Decimal Inch):
0.1181"
Cutting Diameter (mm):
3.00mm
End Type:
Drill End
Material:
Micro Grain Carbide
Number of Flutes:
4
interval quantity:
1
SKU:
25176528
UPC:
Weight:
0.50 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

High performance machining of CFRP, can be used as rougher or finisher YG-1 special CVD coating for extended tool life and better abrasion resistance.


Product Specifications
Manufacturer Part NumberURT5P2AE0300
Mill Diameter (Decimal Inch)0.1181"
Mill Diameter (mm)3.00mm
Shank Diameter (Decimal Inch)0.1181"
Shank Diameter(mm)3.00mm
Length of Cut (Decimal Inch)0.3543"
Length of Cut (mm)9.00mm
Overall Length (Decimal Inch)1.9685"
Overall Length (mm)50.00mm
Number of Flutes4
SeriesURT5P1AE
MaterialMicro Grain Carbide
CoatingDiamond
Shank TypePlain
ApplicationCFRP,GFRP
MachineCNC Gantry,Robot End-Effectors
OperationMilling
End TypeDrill End
