Product Specifications

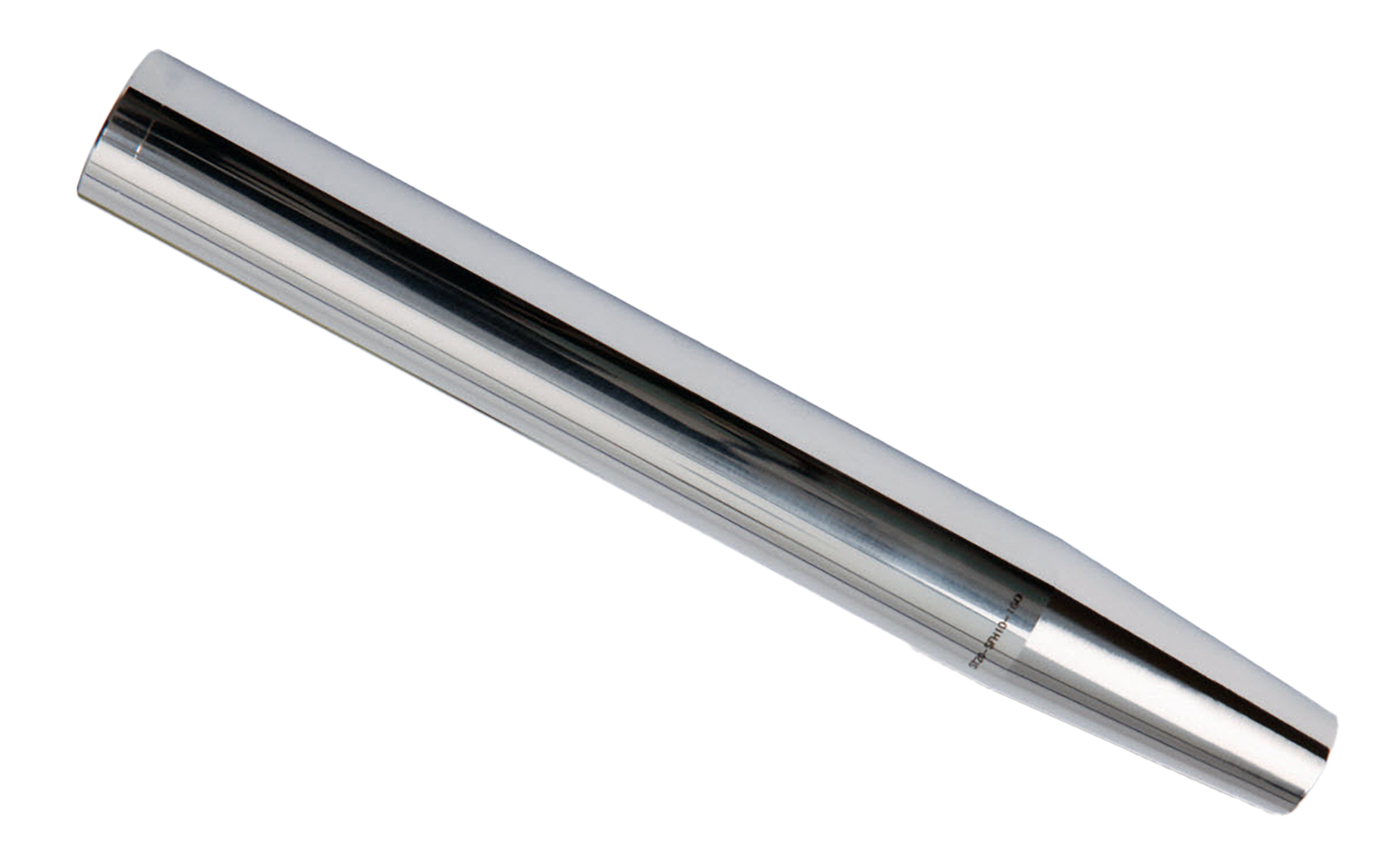

| Manufacturer Part Number | VS315M |
| Body Diameter 1 (Inch) | 43/78" |
| Body Diameter 1 (Decimal Inch) | 0.5512" |
| Body Diameter 1 (mm) | 14.00mm |
| Connection Machine Side (mm) | 20.00mm |
| Connection Work Side (Decimal Inch) | 0.394" |
| Connection Machine Side (Decimal Inch) | 0.7874" |
| Connection Machine Side (Inch) | 37/47" |
| Connection Work Side (Inch) | 37/94" |
| Connect Work Side (mm) | 10.00mm |
| Overall Length (Inch) | 6-3/10" |
| Overall Length (Decimal Inch) | 6.2992" |
| Overall Length (mm) | 160.00mm |
| Body Length (Inch) | 1-1/2" |
| Body Length (Decimal Inch) | 1.5008" |
| Body Length (mm) | 38.12mm |
| Clamping Length (Inch) | 1-15/68" |
| Clamping Length (Decimal Inch) | 1.2205" |
| Clamping Length (mm) | 31.00mm |
| Connection Bore Depth (Inch) | 1-9/13" |
| Connection Bore Depth (Decimal Inch) | 1.6229" |
| Connection Bore Depth (mm) | 43.00mm |
| Thread Diameter Size | M8x1.00mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |
| Product Type | Shank Shrink Fit Extension |
