| Manufacturer Part Number | VS112M |
| Body Diameter 1 (Inch) | 37/94" |
| Body Diameter 1 (Decimal Inch) | 0.3937" |
| Body Diameter 1 (mm) | 10.00mm |
| Connection Machine Side (mm) | 12.00mm |
| Connection Work Side (Decimal Inch) | 0.197" |
| Connection Machine Side (Decimal Inch) | 0.4724" |
| Connection Machine Side (Inch) | 43/91" |
| Connection Work Side (Inch) | 12/61" |
| Connect Work Side (mm) | 5.00mm |
| Overall Length (Inch) | 6-3/10" |
| Overall Length (Decimal Inch) | 6.2992" |
| Overall Length (mm) | 160.00mm |
| Body Length (Inch) | 1/2" |
| Body Length (Decimal Inch) | 0.5004" |
| Body Length (mm) | 12.71mm |
| Clamping Length (Inch) | 13/22" |
| Clamping Length (Decimal Inch) | 0.5906" |
| Clamping Length (mm) | 15.00mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |

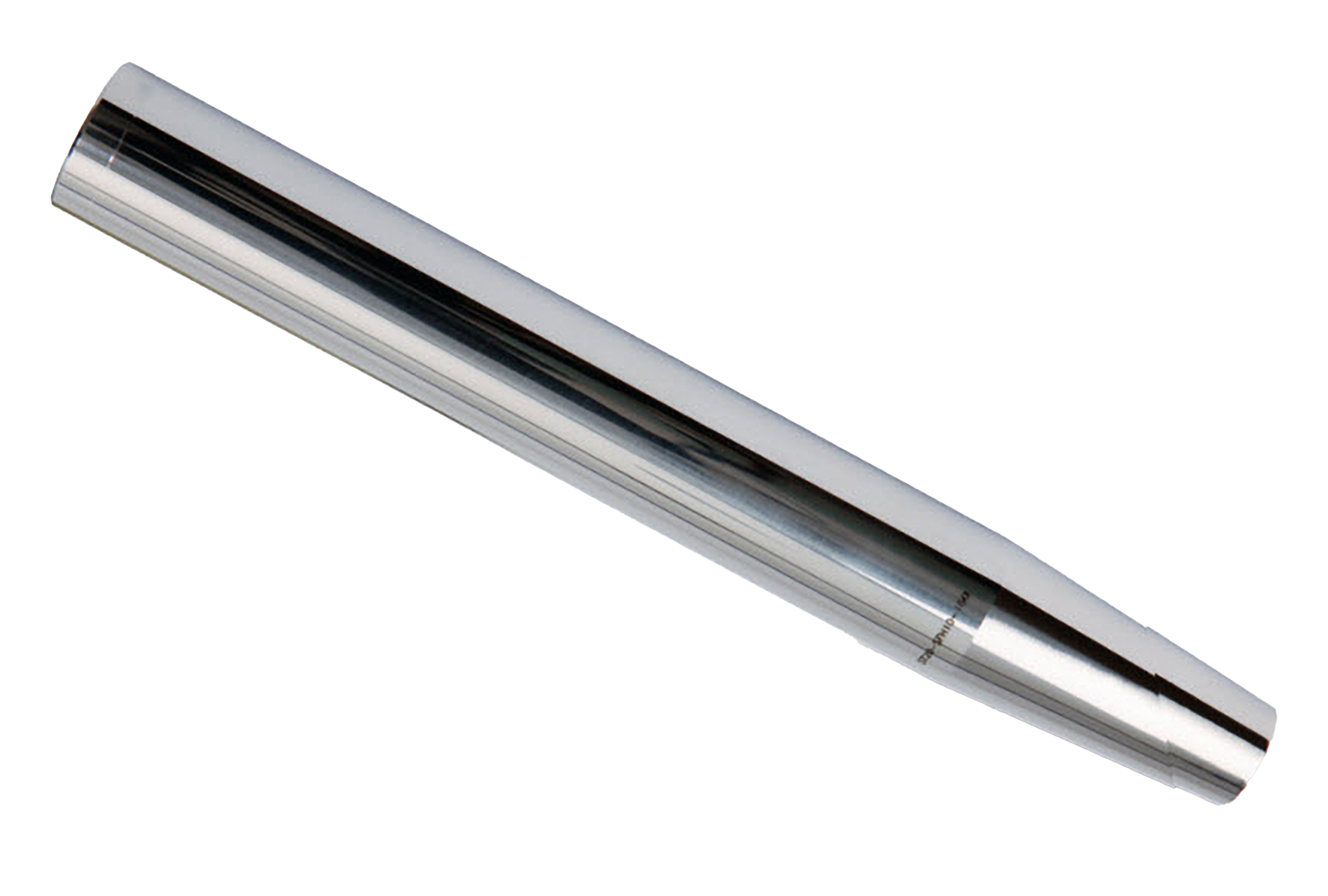

| Product Type | Shank Shrink Fit Extension |
