Product Specifications
Manufacturer Part Number | VS511M |
Body Diameter 1 (Inch) | 37/47" |
Body Diameter 1 (Decimal Inch) | 0.7874" |
Body Diameter 1 (mm) | 20.00mm |
Connection Machine Side (mm) | 32.00mm |
Connection Work Side (Decimal Inch) | 0.315" |
Connection Machine Side (Decimal Inch) | 1.2598" |
Connection Machine Side (Inch) | 1-20/77" |
Connection Work Side (Inch) | 23/73" |
Connect Work Side (mm) | 8.00mm |
Overall Length (Inch) | 6-3/10" |
Overall Length (Decimal Inch) | 6.2992" |
Overall Length (mm) | 160.00mm |
Body Length (Inch) | 3" |
Body Length (Decimal Inch) | 3.0016" |
Body Length (mm) | 76.24mm |
Clamping Length (Inch) | 1-2/85" |
Clamping Length (Decimal Inch) | 1.0236" |
Clamping Length (mm) | 26.00mm |
Connection Bore Depth (Inch) | 1-5/12" |
Connection Bore Depth (Decimal Inch) | 1.4773" |
Connection Bore Depth (mm) | 36.00mm |
Thread Diameter Size | M6x1.00mm |
Body Half Taper Angle (Degree) | 4.5 Degree |

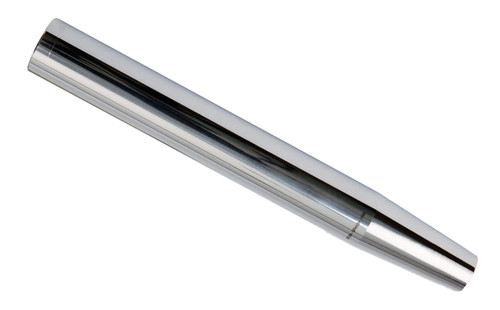

Product Type | Shank Shrink Fit Extension |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Overall Length (Inch):
6-3/10"
Overall Length (Decimal Inch):
6.2992"
Overall Length (mm):
160.00mm
interval quantity:
1
