| Manufacturer Part Number | VS413M |
| Body Diameter 1 (Inch) | 37/47" |
| Body Diameter 1 (Decimal Inch) | 0.7874" |
| Body Diameter 1 (mm) | 20.00mm |
| Connection Machine Side (mm) | 25.00mm |
| Connection Work Side (Decimal Inch) | 0.236" |
| Connection Machine Side (Decimal Inch) | 0.9843" |
| Connection Machine Side (Inch) | 62/63" |
| Connection Work Side (Inch) | 13/55" |
| Connect Work Side (mm) | 6.00mm |
| Overall Length (Inch) | 6-3/10" |
| Overall Length (Decimal Inch) | 6.2992" |
| Overall Length (mm) | 160.00mm |
| Body Length (Inch) | 1-1/4" |
| Body Length (Decimal Inch) | 1.2508" |
| Body Length (mm) | 31.77mm |
| Clamping Length (Inch) | 13/15" |
| Clamping Length (Decimal Inch) | 0.8661" |
| Clamping Length (mm) | 22.00mm |
| Connection Bore Depth (Inch) | 1-5/12" |
| Connection Bore Depth (Decimal Inch) | 1.4773" |
| Connection Bore Depth (mm) | 36.00mm |
| Thread Diameter Size | M5x0.80mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |

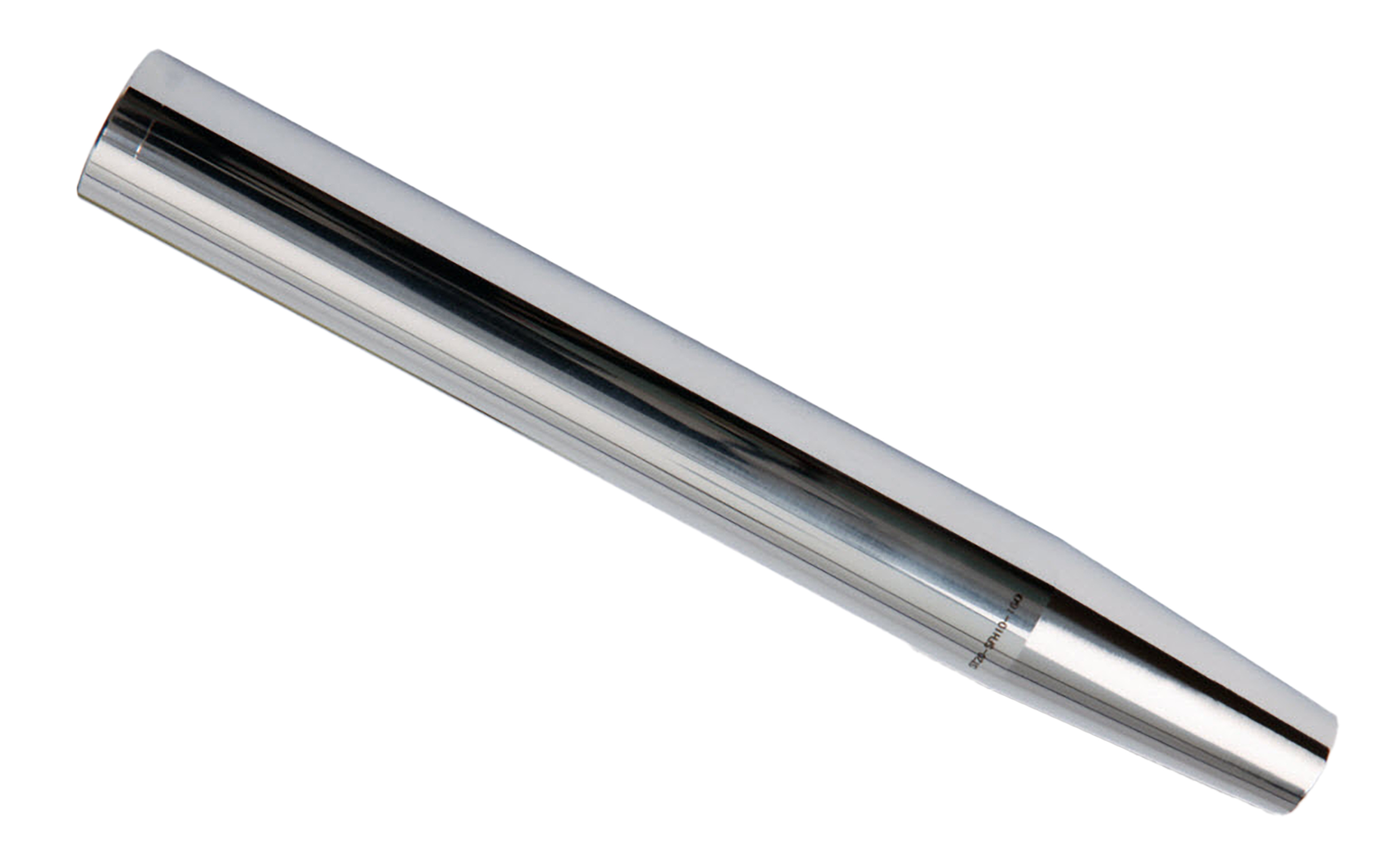

| Product Type | Shank Shrink Fit Extension |
