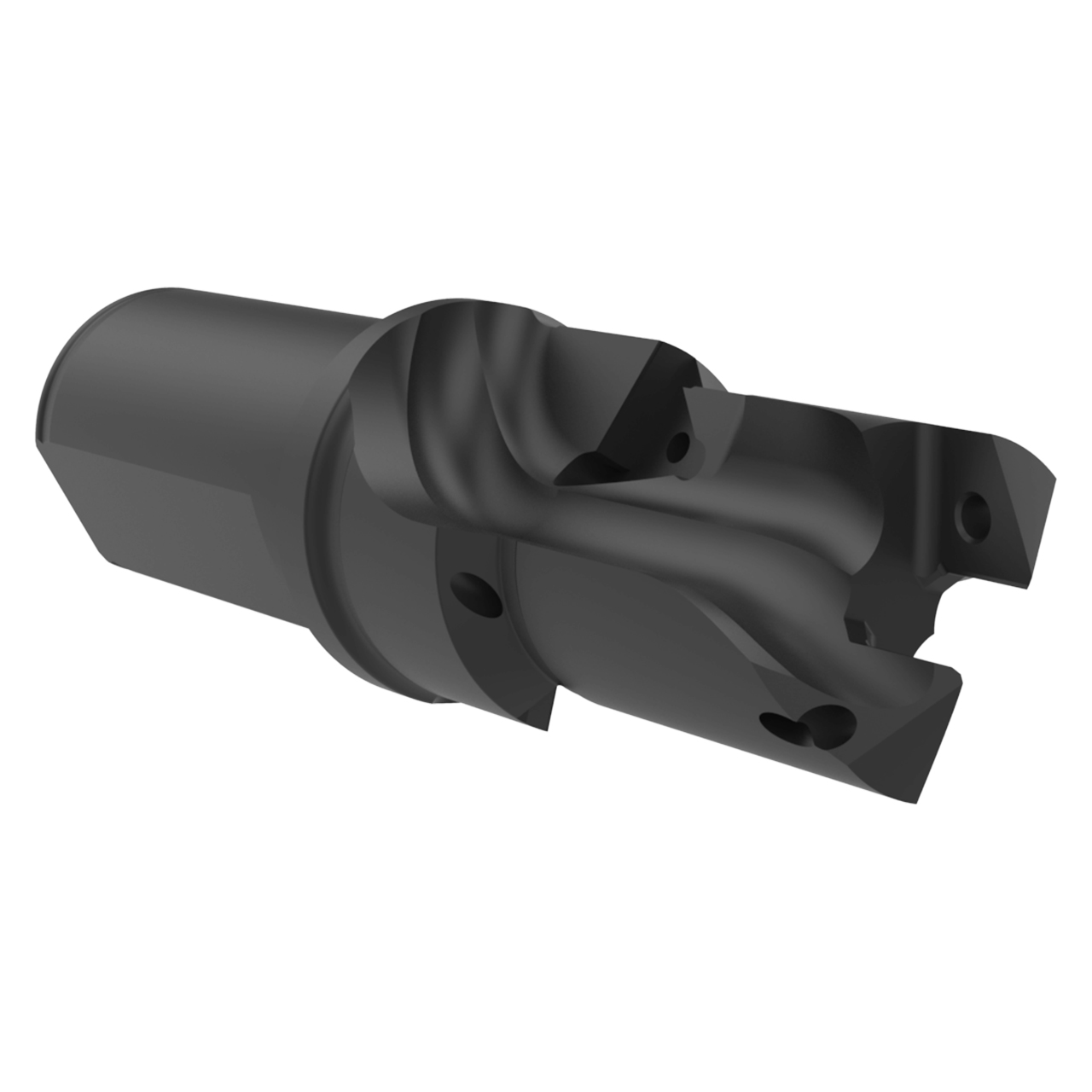

Allied Machine and Engineering 60129C45-125F | 29.00mm Diameter x 31.75mm Shank 29 Series Straight Flute Combination Chamfer and Countersink Drill - All Industrial Tool Supply

Allied Machine and Engineering 60129C45-125F | 29.00mm Diameter x 31.75mm Shank 29 Series Straight Flute Combination Chamfer and Countersink Drill

$504.00 $473.76
(You save $30.24)
Total Price: $947.52

This product is sold in increments of 2

SKU:
23034208
UPC:
Weight:
1.36 LBS
Minimum Purchase:
2 units
Shipping:
Free Shipping

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.

Features:

  • The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
  • Straight and helical flute options
  • Precision-ground locating slots
  • Cylindrical flanged and flanged flat shank options

Product Specifications
# MFG60129C45-125F
Body Length (Inch)2-31/32"
Drill Depth (Inch)2-13/64"
Maximum Diameter (Decimal Inch)1.2597"
Maximum Diameter (mm)31.99mm
Minimum Diameter (Decimal Inch)1.1417"
Minimum Diameter (mm)29mm
Overall Length (Inch)5-15/64"
Series29
Shank Diameter (Inch)1-1/4"
Shank Length (Inch)2-9/32"
Step Diameter (Inch)1-29/64"
Step Length (Inch)1-23/32"
Tool Reference Length (Inch)3-5/64"
Length Type1xD
Coolant Inlet Style RearTSC
FlatYes
Flute TypeStraight
Shank TypeFlanged
