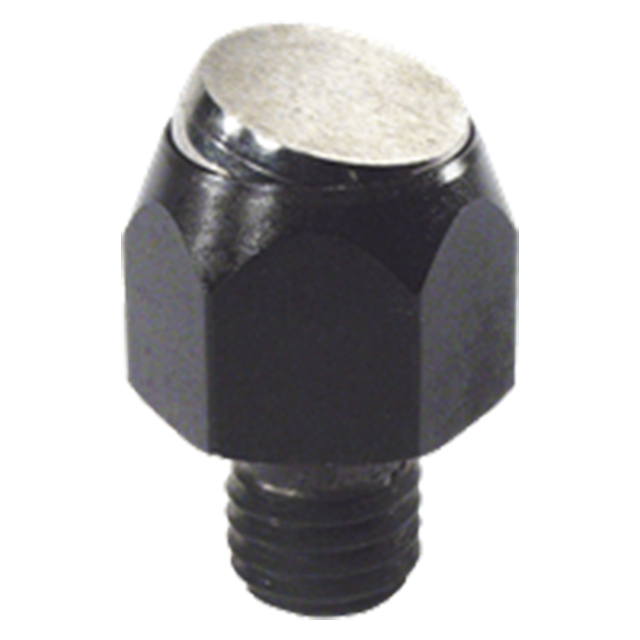

Swivel Contact Bolts
Precision swivel ball that can be used either as a contact bolt or as a rest pad. As contact bolts, these swivel-ball units are ideal for evenly distributing clamping pressure on sloped or uneven surfaces. As rest pads, these units are precision ground (top and bottom) for accurate height location, even on sloped surfaces. 20° total swivel angle. Made in USA.
Application Information
Used as a contact bolt
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Ball | Chromium Steel | Heat Treated Rc 60-67 | - | Yes | Yes |
| Body | 1144 Steel | Heat Treated Rc 35-40 | Black Oxide | Yes | Yes |

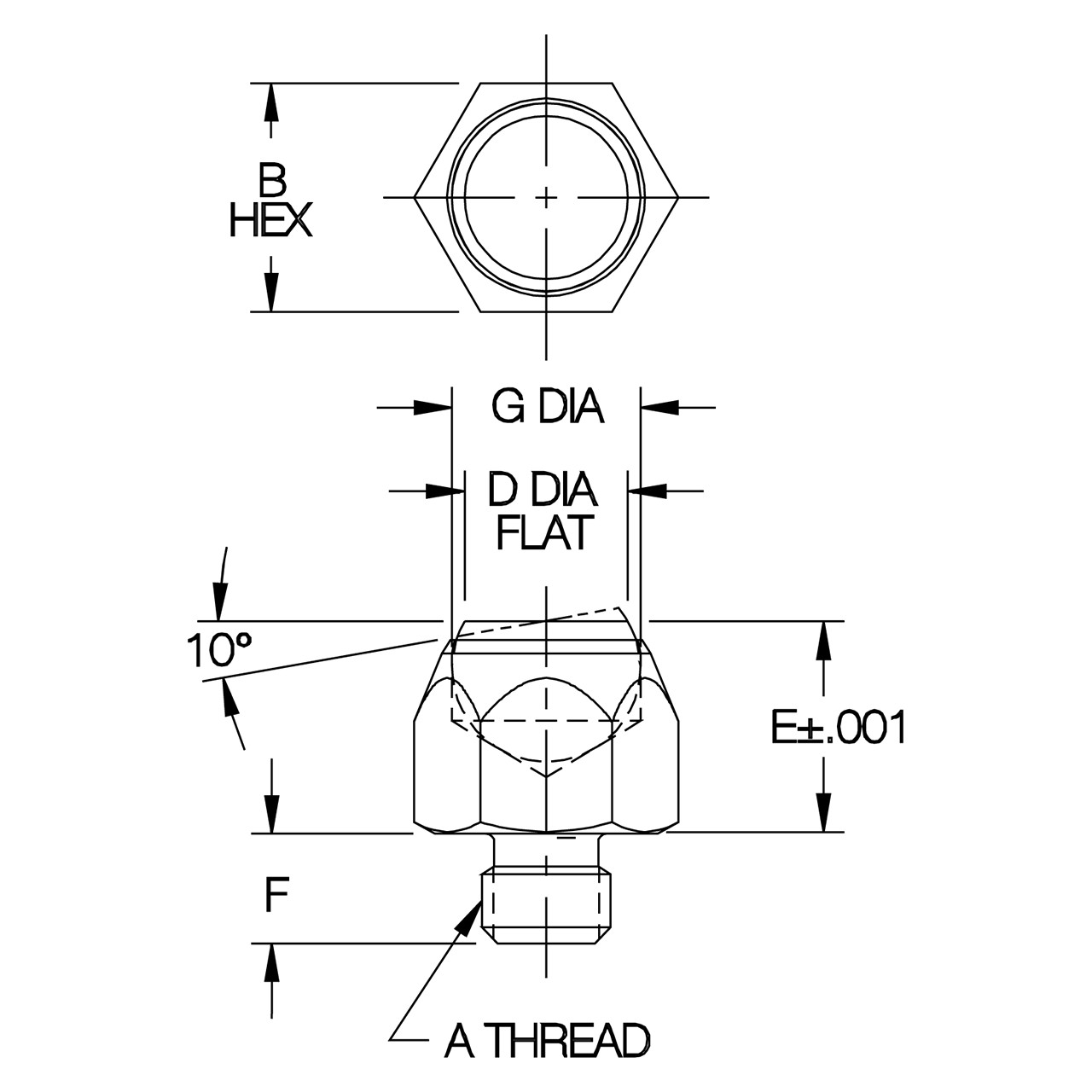

Parts Specification
| A Thread | B (Inch) | D Diameter (Inch) | E Nominal (Inch) | E Actual (Inch) | F (Inch) | G (Inch) |
| 1/2-13 | 7/8" | 5/8" | 13/16" | 0.8125" | 0.41" | 23/32" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
