High-Rise Clamps-Slotted Heel
All-in-one assemblies designed for securely clamping taller workpieces. High-Rise Clamps incorporate a Slotted-Heel Clamp Strap, which has a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Standard radius nose provides firm workpiece contact. Made in USA.
Application Information

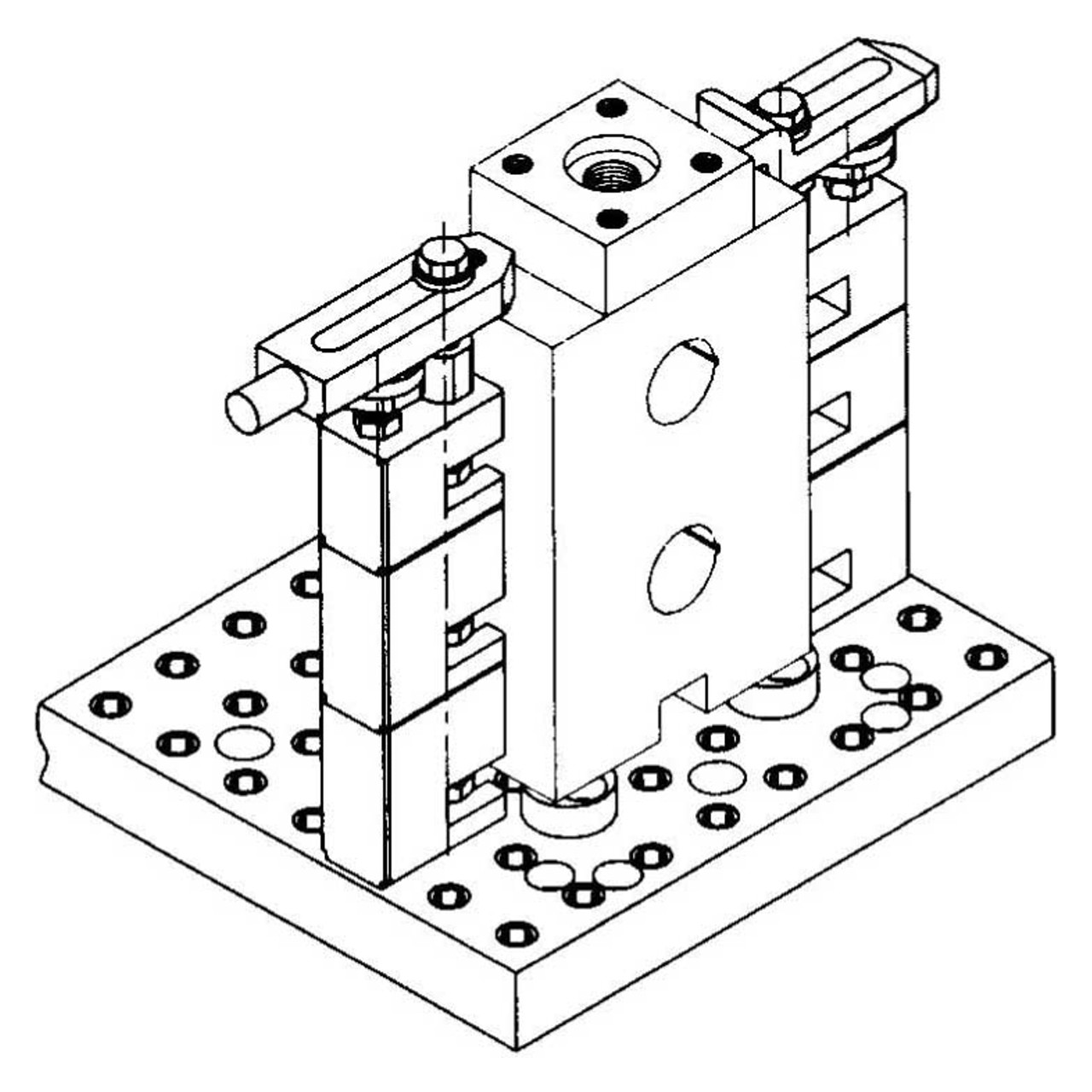

High-Rise Clamps can be stacked on riser blocks for additional height.
Mounting
A hex-head cap screw is required for mounting.
Material
| Material | Heat Treat | Finish |
| 1018 Steel | Carburized Hardened | Black Oxide |
Parts Specification

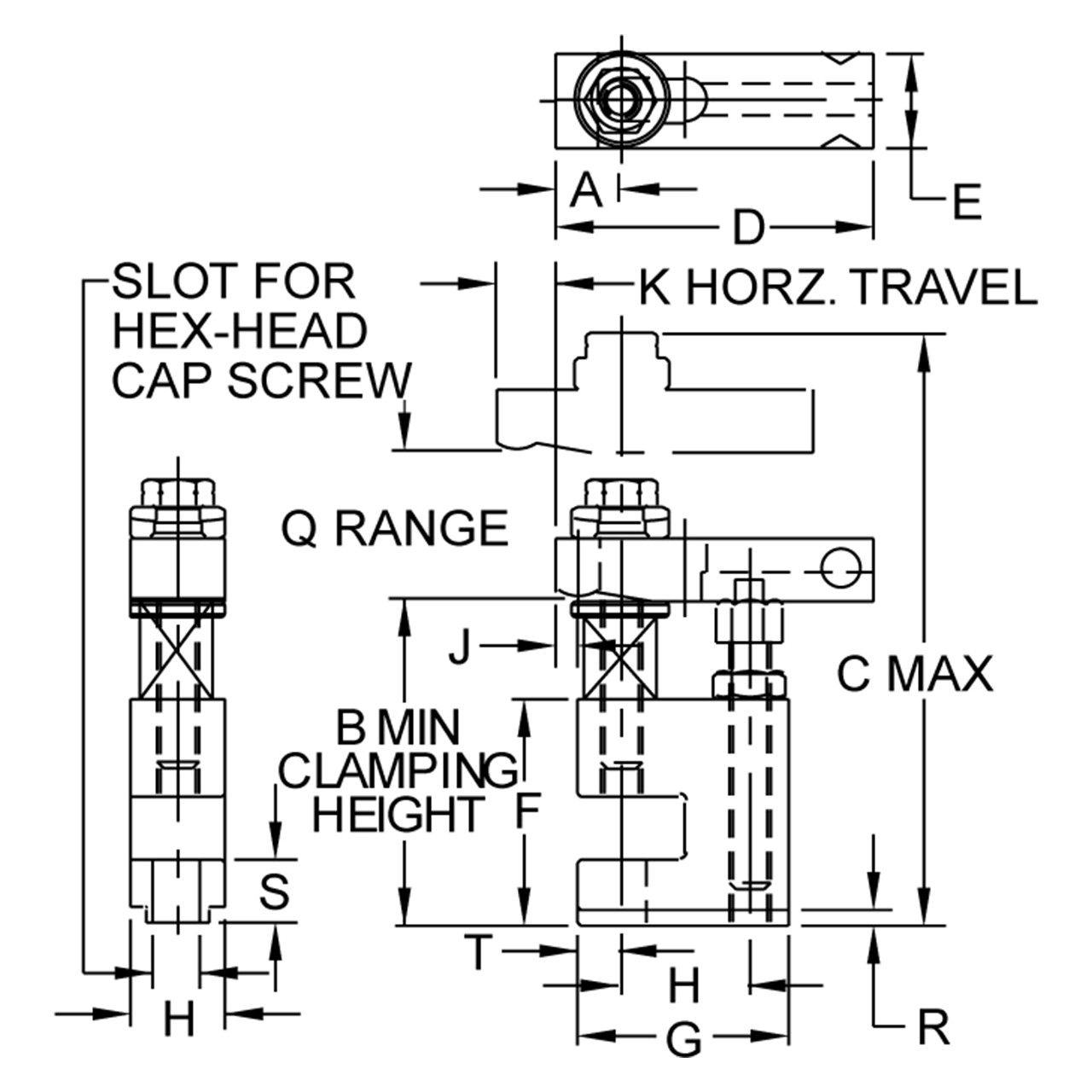

| Stud Size (Inch) | A (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | Q (Inch) | R | S | T |
| 1/2-13" | 23/32" | 3-5/8" | 5-3/4" | 4" | 1-1/4" | 2-3/4" | 2-3/4" | 1-9/16" | 13/64" | 1-9/32" | 1" | 3/16 | 13/16 | 9/16 |
