Carr Lane CLM-1000-SHR-1 | M10 Thread x 1.5mm Pitch Swivel Hoist Ring

Swivel Hoist Rings-Standard Ring

Carr Lane standard swivel hoist rings are the original safety-engineered hoist ring. These safety swivel hoist rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction. Standard swivel hoist rings feature a safety factor of 5:1. Made in USA.

Technical Information

Hoist Ring Technical Information Hoist Ring Safety Precautions Types of Hoist Rings

Application Information

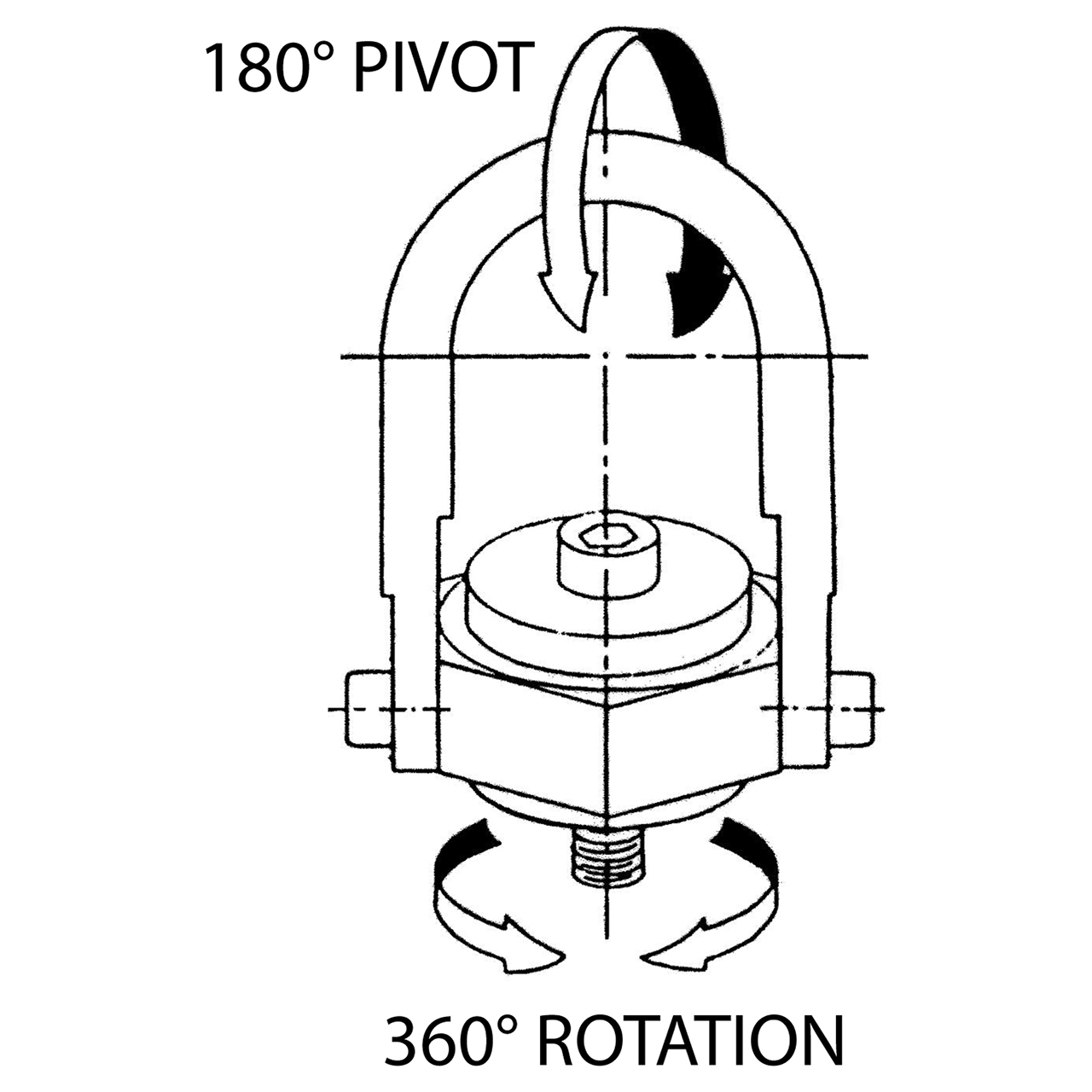

The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.

Optional Electroless-Nickel Finish

These alloy-steel Swivel Hoist Rings are now also available with electroless nickel plating. This optional Finish offers excellent corrosion and wear resistance while still providing the full load capacity of the heat-treated alloy-steel hoist rings. Electroless nickel is a hard, uniform coating that is very resistant to a wide range of chemicals, which makes these hoist rings suitable for many corrosive and marine environments.

Installation

Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Use the shortest bolt length only for steel plates, the other lengths for weaker Materials and for through-hole mounting with a washer and nut.

Material

ItemMaterialHeat TreatFinishSwivel Hoist Rings (Standard Ring)Alloy SteelHeat TreatedBlack Oxide or Electroless Nickel FinishClick here for detailed Material and Finish specifications.California residents click here for Prop 65 information.
