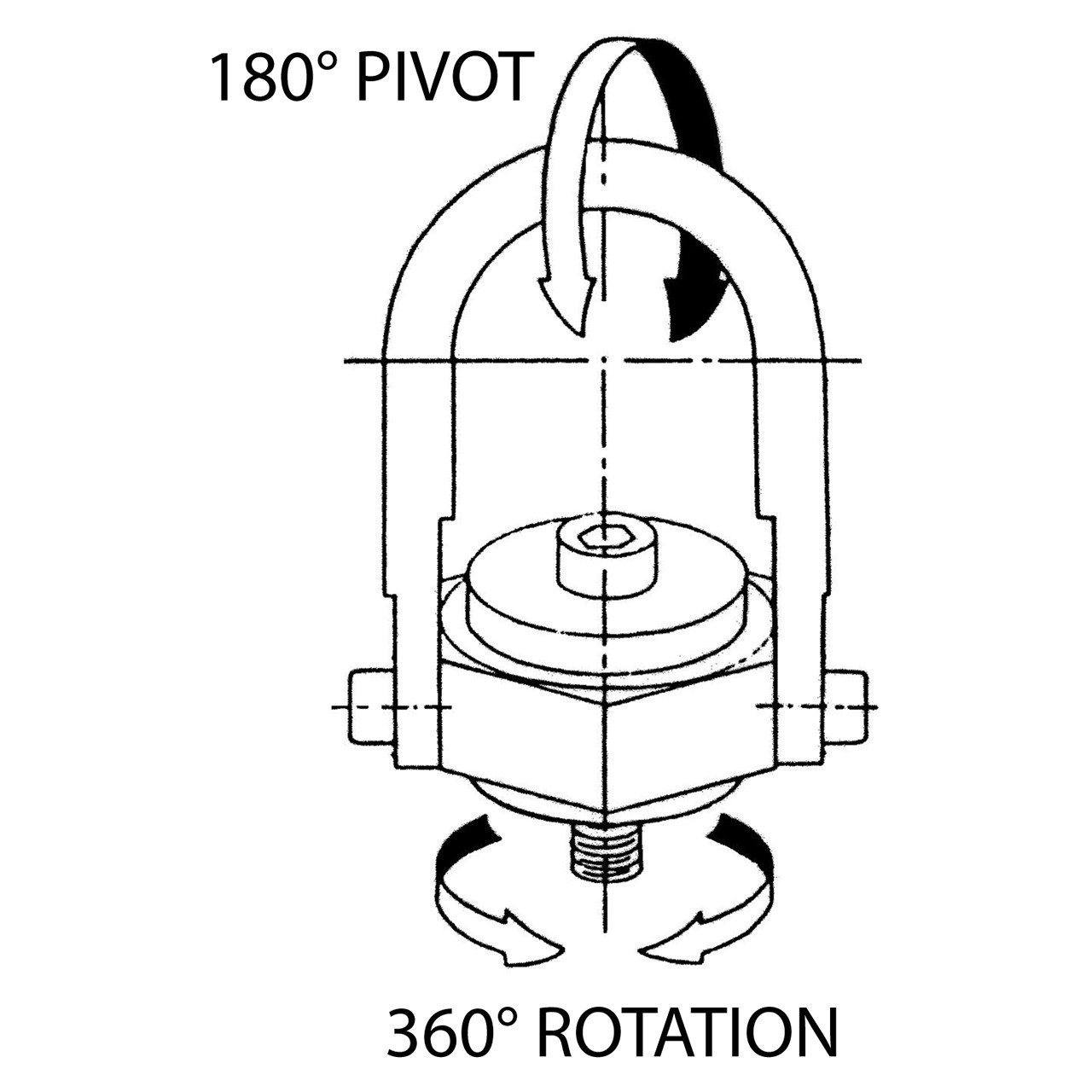

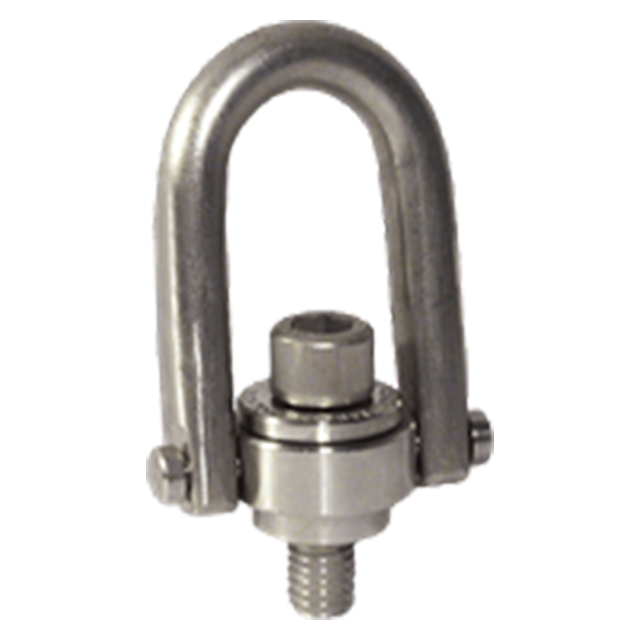

Stainless steel version of the original safety-engineered hoist ring, with a load rating equal to 50% of the steel version. Useful for corrosive, cryogenic, or elevated-temperature environments. Swivel Hoist Rings pivot 180ยฐ and swivel 360ยฐ simultaneously to allow lifting from any direction. Safety factor = 5:1. Made in USA.
The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.
Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Some hoist rings are available with a choice of bolt lengths. Use the shortest bolt length only for steel plates, the other lengths for weaker Materials and for through-hole mounting with a washer and nut.
| Item | Material | Heat Treat | Finish |
| Swivel Hoist Rings-Stainless Steel (Standard Ring) | 300-Series Stainless Steel | Yes | Passivated |
| Load Rating (kg) | A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E Diameter (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | N Diameter (mm) | P (mm) | Installation Torque (nm) |
| 225 kg | M10 | 1.5mm | 17mm | 18mm | 68mm | 9.5mm | 11mm | 41mm | 25.5mm | 47mm | 28mm | 59mm | 19mm | 4.5mm | 8 Nm |
