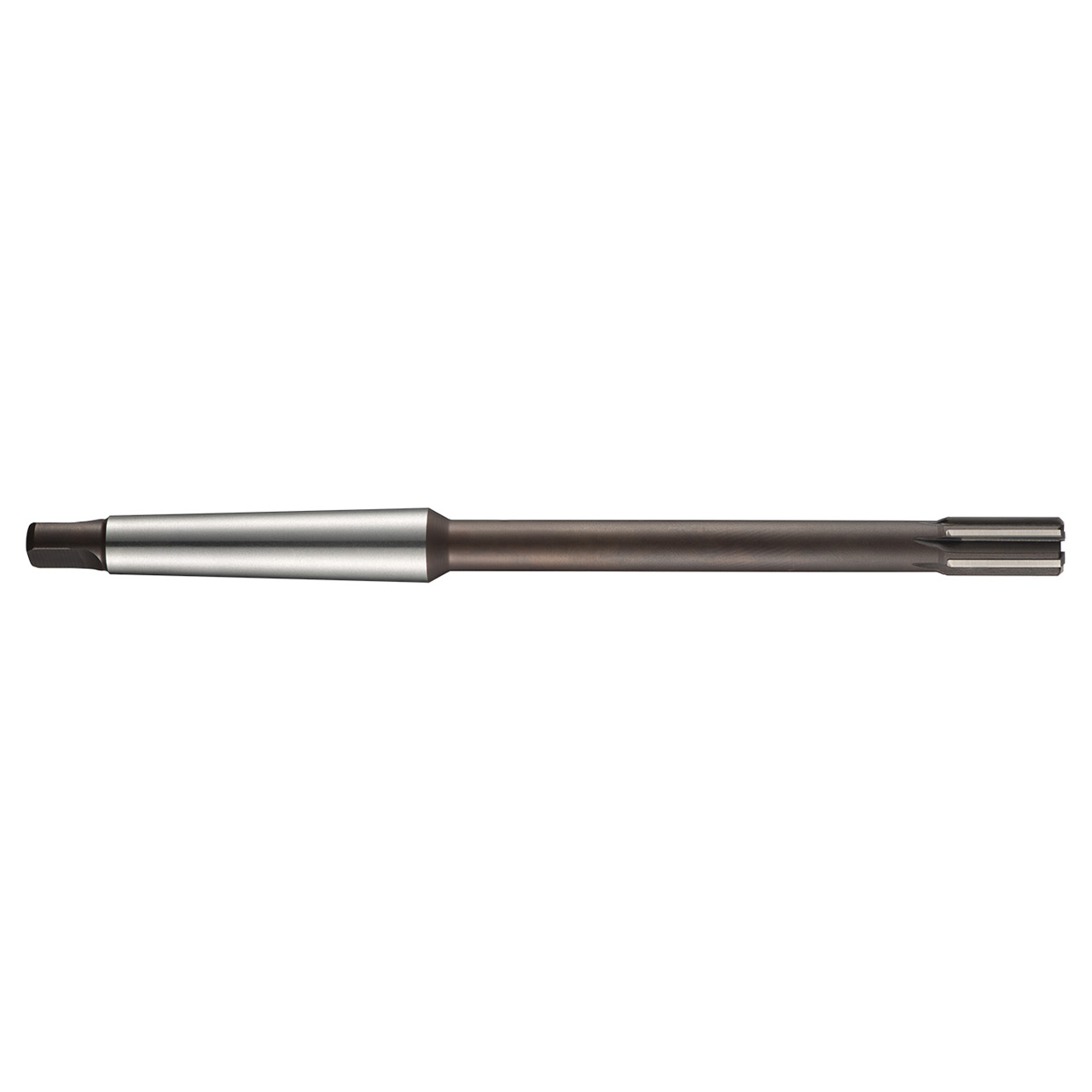

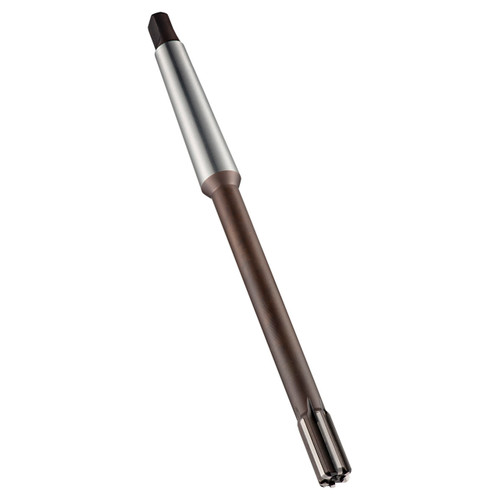

Dormer B44212.0 | 0.4724" Diameter x 7.1654" OAL Bright Coated Chucking Reamer

$149.34
Brand:
Dormer
Reamer Diameter (Inch):
15/32"
Reamer Diameter (Decimal Inch):
0.4724"
Reamer Diameter (mm):
12mm
Overall Length (Inch):
7-11/64"
Overall Length (Decimal Inch):
7.1654"
Overall Length (mm):
182mm
Flute Length (Inch):
3/4"
Flute Length (Decimal Inch):
0.7500"
Flute Length (mm):
19mm
Material:
HM
Finish/Coating:
Bright
SKU:
10115358
UPC:
7320760421192
Weight:
4.48 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Machine reamer with straight flutes which are extremely unequally spaced and a Morse taper shank, diameter 12.00mm with an overall length of 182mm, a flute length of 19mm and 116.5mm reach with neck relief, according to DIN 8051 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.


Product Specifications
EDP Number0421192
Flute Count6
Cutting Diameter (Inch)0.4724"
Body Length (mm)116.5mm
Overall Length (Inch)7.1654"
Material CodeHM
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
