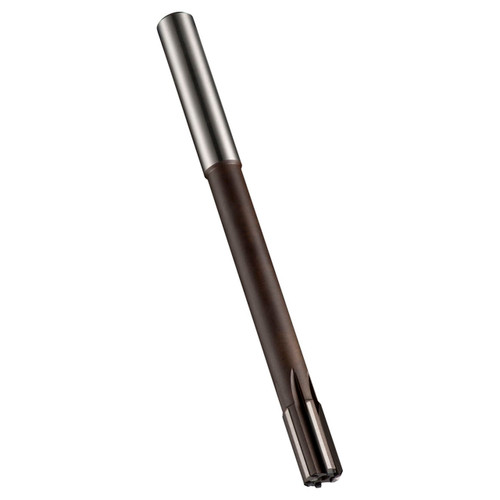

Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 18.00mm with an overall length of 182mm, a flute length of 22mm and 130mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
| EDP Number | 0421154 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.5512" |
| Cutting Diameter (Inch) | 0.7087" |
| Body Length (mm) | 130mm |
| Overall Length (Inch) | 7.1654" |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | Germany |
