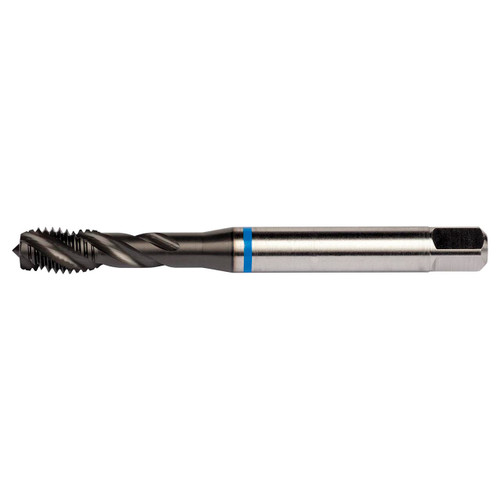

Dormer E8123/8H3 | 0.381" Diameter 3 Flute SUPER-B Coated Spiral Flute Tap

$46.35
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15025964
Weight:
1.69 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 3/8" with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3810" shank and 0.2840" square drive, powder metallurgical HSS-E with Super-B coating and 40° helix angle for 2.5xD blind hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.381"
No of Flutes3
Flute Helix Angle40
Usable Length (Inch)1.535"
Thread Diameter Size3/8
Material CodeHSS-E-PM
Thread Tolerance Class2B-3B
Threading Length (Inch)0.591"
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormUNC-Unified Coarse
