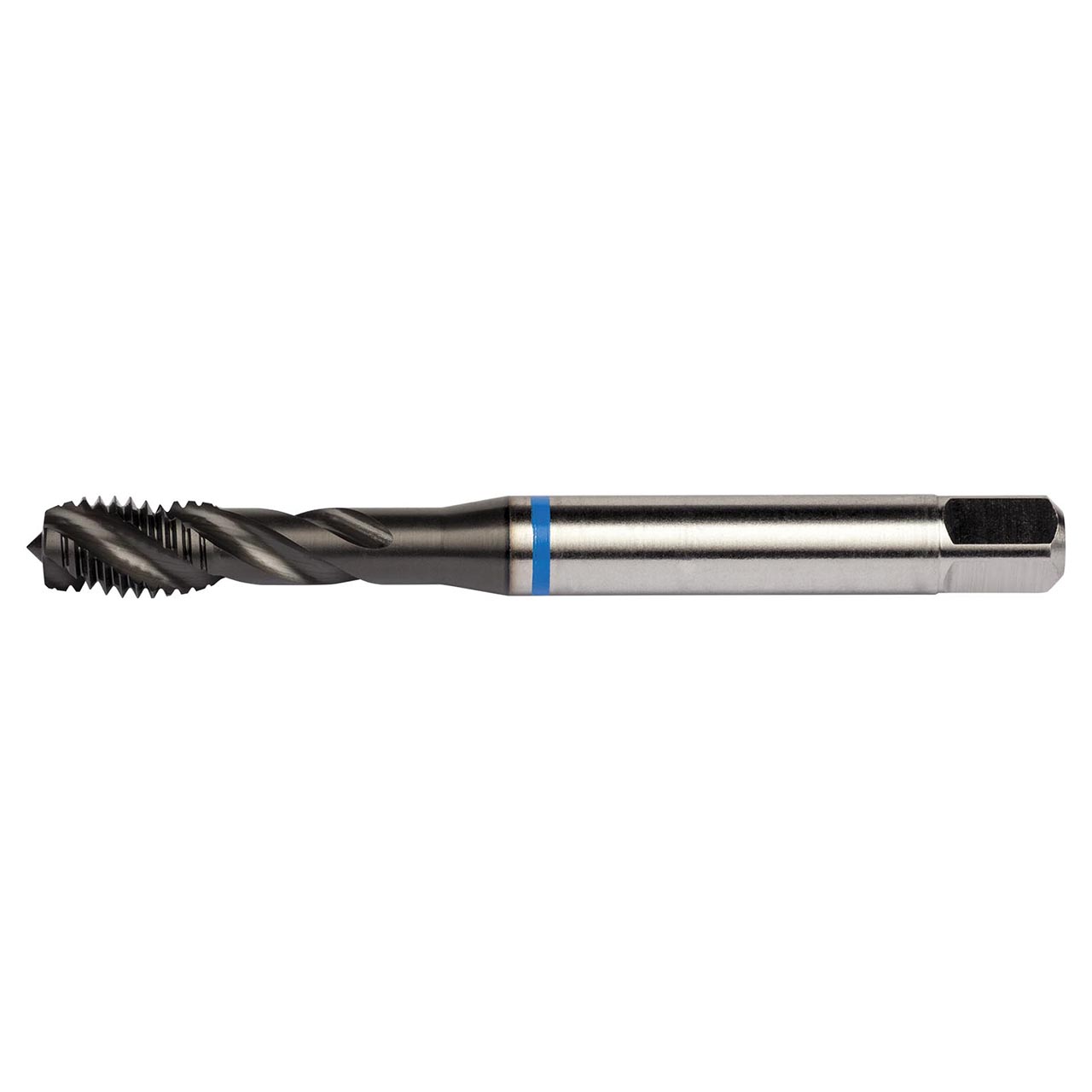

Dormer 7350349 | UNC 5/8"-11 Thread Size x 12.19mm Shank x 0.787" Length 2B-3B 4 Flute SUPER-B Coated HSS-E-PM E812 Spiral Flute Tap

$297.00 $133.65
(You save $163.35)
Brand:
Dormer
Thread Limit:
2B-3B
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
SUPER-B
Flute Direction:
Right Hand
Threads per Inch (TPI):
11.00
interval quantity:
1
SKU:
15025969
UPC:
7320760751930
Weight:
0.20 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 5/8" with 11 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800" shank and 0.3580" square drive, powder metallurgical HSS-E with Super-B coating and 40 Degree helix angle for 2.5xD blind hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.48"
No of Flutes4
Flute Helix Angle40
Thread Diameter Size5/8
Material CodeHSS-E-PM
Thread Tolerance Class2B-3B
Threading Length (Inch)0.787"
Cutting DirectionRight Hand
CoatingSUPER-B
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormUNC-Unified Coarse
Country of originIndia
