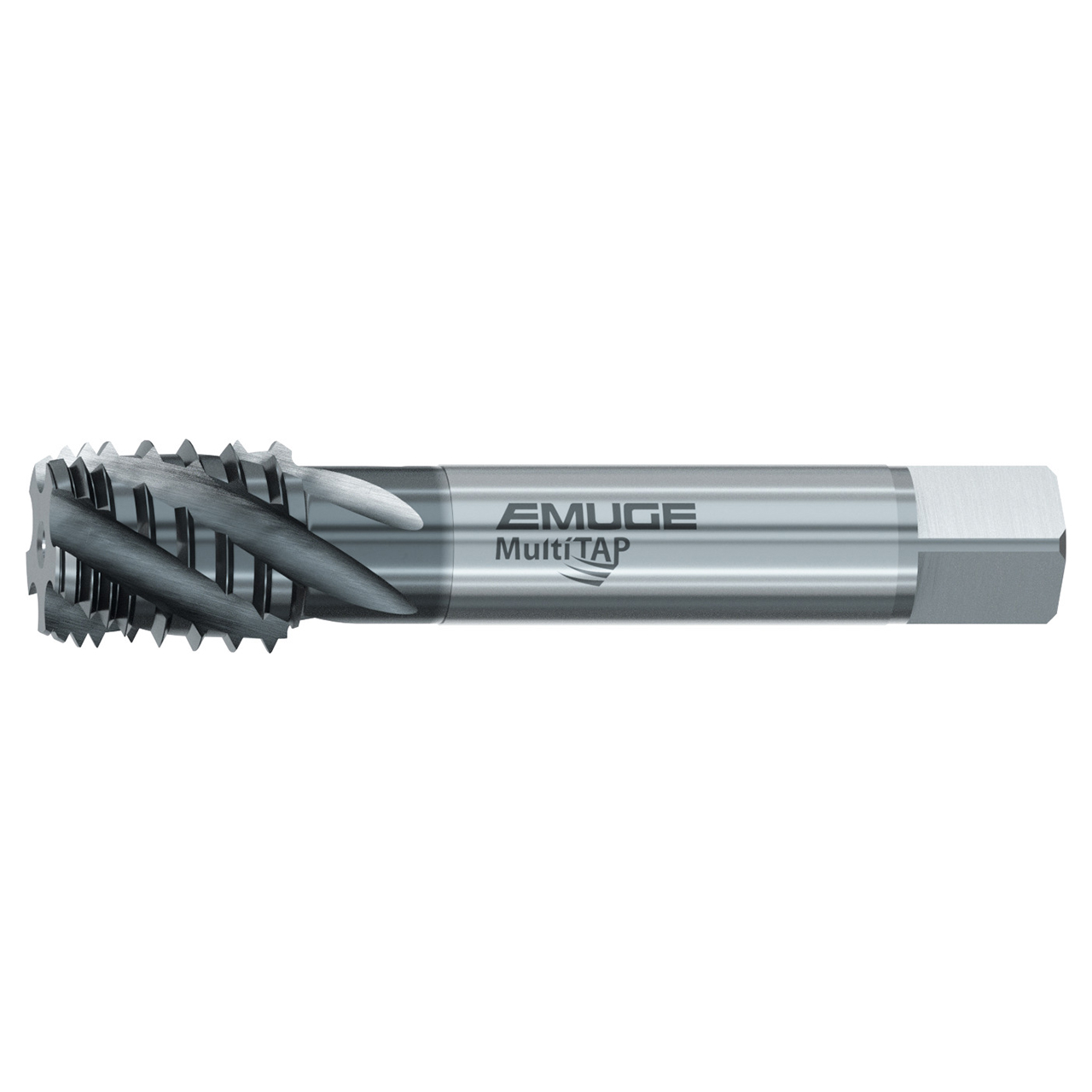

Features:
- MultiTAP pipe taps are designed to operate in various materials found in a job shop Environment
- The NPT design has a 35 Degree helix flute form to improve chip evacuation
- Interrupted, skip tooth profile reduces torque requirements and extends tool life
- TICN coated for additional wear resistance and increased tool life
Product Specifications
| Manufacturer Part Number | CU889300.5768 |
| Thread Size | 3/4"-14" |
| Thread Diameter Size (Inch) | 3/4" |
| Thread Standard | NPT |
| Thread per Inch (TPI) | 14 TPI |
| Tap Square (Decimal Inch) | 0.679" |
| Thread Length (Decimal Inch) | 1.020" |
| Overall Length (Inch) | 4" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.906" |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | Emuge Standard |
| Flute Direction | Right Hand |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 35 Degree |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | MultiTAP |
| Application | Pipe Taps |
| Product Type | Interrupted Thread Pipe Tap |
