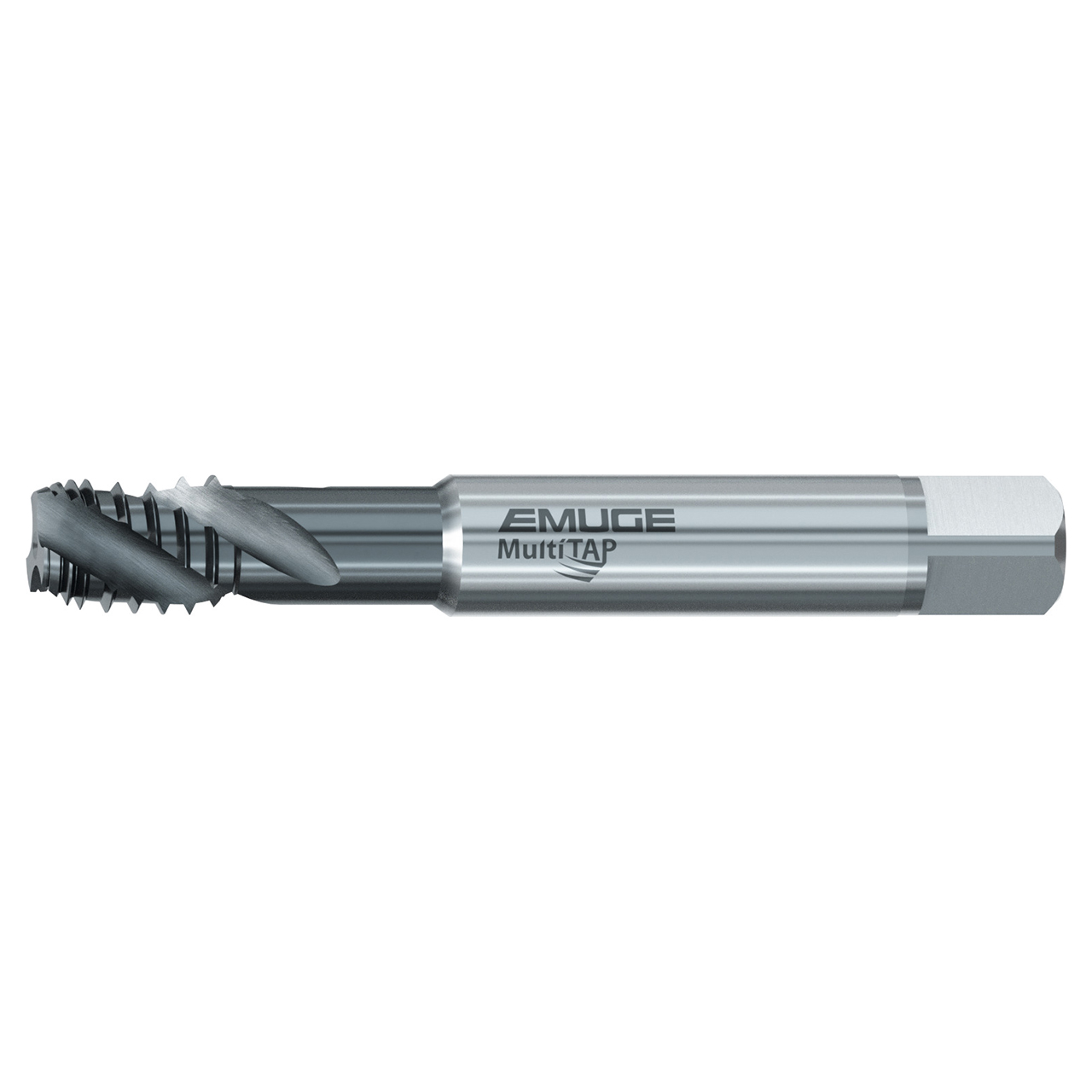

Emuge BU889300.5765 | 4" OAL 1/4"-18 Thread Size 3 Flute 35 Degree Helix Angle TICN Coated Interrupted Thread Pipe Tap

Emuge BU889300.5765 | 4" OAL 1/4"-18 Thread Size 3 Flute 35 Degree Helix Angle TICN Coated Interrupted Thread Pipe Tap

SKU: 18020098 Weight: 0.47 LBS Minimum Purchase: 1 unit
UPC:
$112.43 $106.81
(You save $5.62)
Shipping: Calculated at Checkout

About This Item

Features:

  • MultiTAP pipe taps are designed to operate in various materials found in a job shop Environment
  • The NPT design has a 35 Degree helix flute form to improve chip evacuation
  • Interrupted, skip tooth profile reduces torque requirements and extends tool life
  • TICN coated for additional wear resistance and increased tool life

Product Specifications
Manufacturer Part NumberBU889300.5765
Thread Size1/4"-18"
Thread Diameter Size (Inch)1/4"
Thread StandardNPT
Thread per Inch (TPI)18 TPI
Tap Square (Decimal Inch)0.421"
Thread Length (Decimal Inch)0.770"
Overall Length (Inch)4"
Shank Machine Side Connection Diameter (Decimal Inch)0.563"
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsEmuge Standard
Flute DirectionRight Hand
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute3
Flute Helix Angle (Degree)35 Degree
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeMultiTAP
ApplicationPipe Taps
Product TypeInterrupted Thread Pipe Tap
