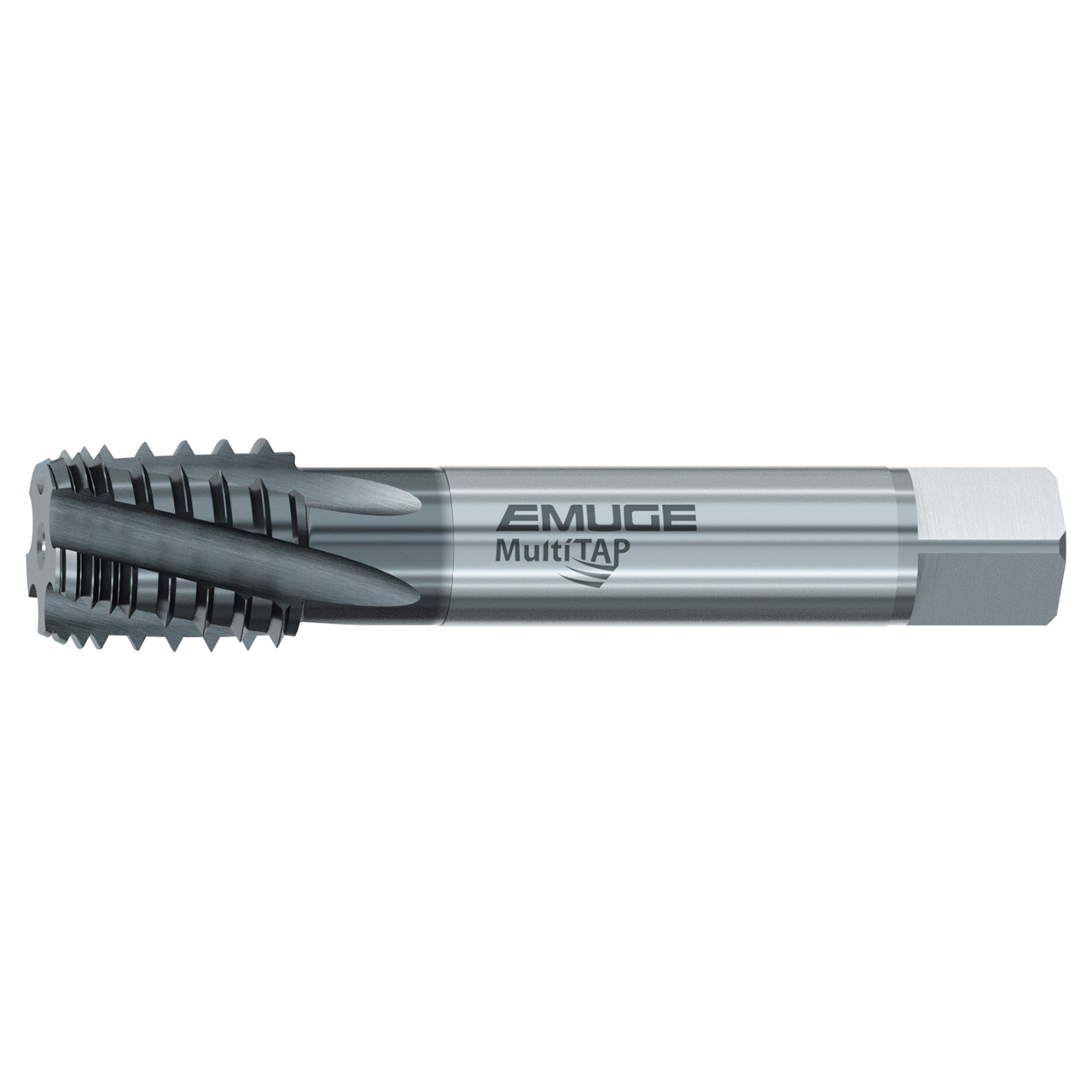

Emuge CU859300.5787 | 4" OAL 3/4"-14 Thread Size 5 Flute 15 Degree Helix Angle TICN Coated Interrupted Thread Pipe Tap

Emuge CU859300.5787 | 4" OAL 3/4"-14 Thread Size 5 Flute 15 Degree Helix Angle TICN Coated Interrupted Thread Pipe Tap

SKU: 18020112 Weight: 0.60 LBS Minimum Purchase: 1 unit
UPC:
$392.42 $372.80
(You save $19.62)
Shipping: Free Shipping

About This Item

Features:

  • MultiTAP pipe taps are designed to operate in various materials found in a job shop Environment
  • The NPTF design has a slow spiral design to improve tool life
  • Interrupted, skip tooth profile reduces torque requirements and extends tool life
  • TICN coated for additional wear resistance and increased tool life

Product Specifications
Manufacturer Part NumberCU859300.5787
Thread Size3/4"-14"
Thread Diameter Size (Inch)3/4"
Thread StandardNPTF
Thread per Inch (TPI)14 TPI
Tap Square (Decimal Inch)0.679"
Thread Length (Decimal Inch)1.020"
Overall Length (Inch)4"
Shank Machine Side Connection Diameter (Decimal Inch)0.906"
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsEmuge Standard
Flute DirectionRight Hand
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute5
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeMultiTAP
ApplicationPipe Taps
Product TypeInterrupted Thread Pipe Tap
