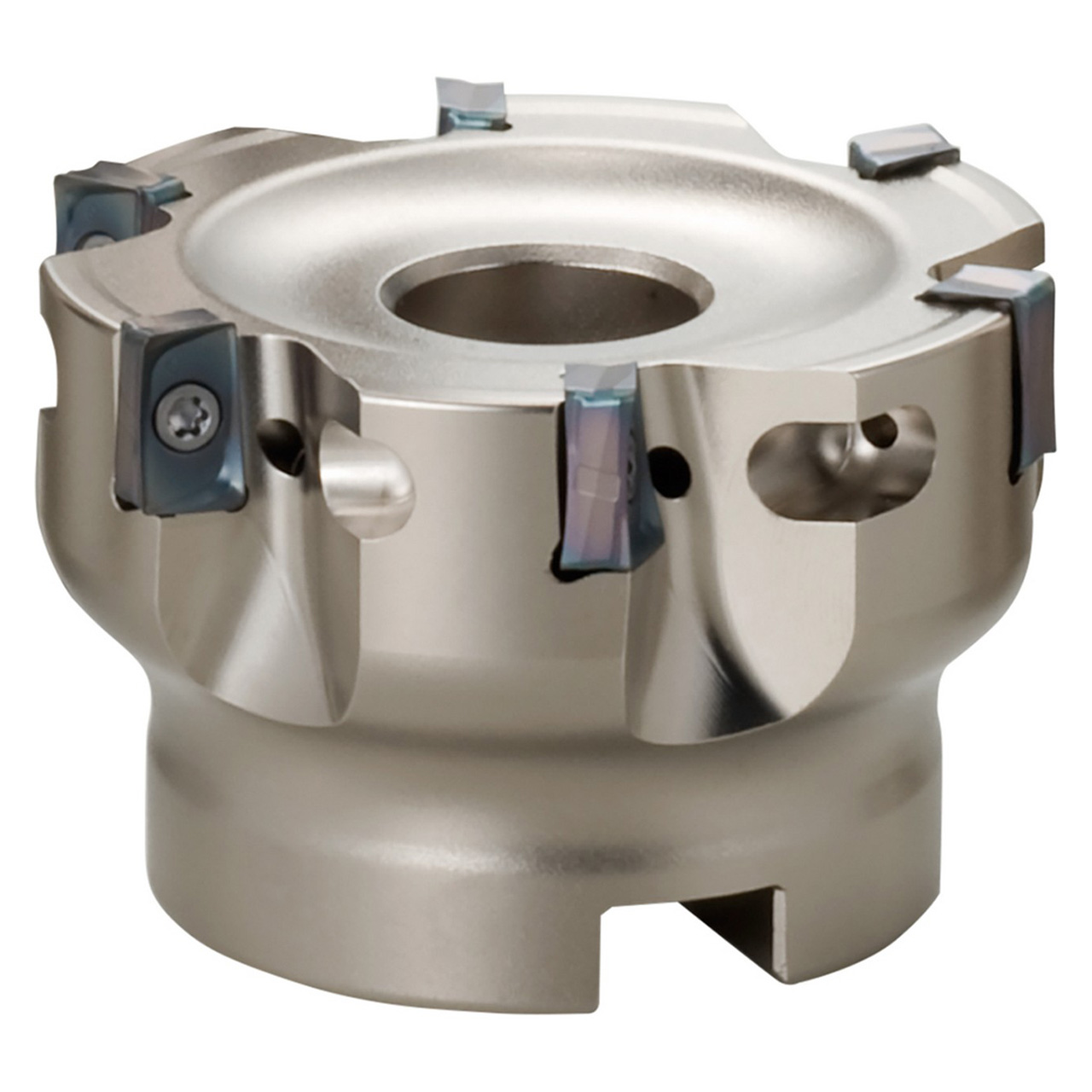

Features:
- 90 Degree Lead angle face mill
- Application: shouldering, facing, slotting, plunging
- 90 Degree milling with economical, double-sided 4-edge inserts
- Improved toolholder durability and insert installation accuracy
- CA6535 and PR1535 insert grades for difficult-to-cut material
Product Specifications
| EDP Number | THN05204 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906" |
| Cutting Diameter (Decimal Inch) | 2.5000" |
| Cutting Diameter (mm) | 63.50mm |
| Cutting Diameter Minimum (Decimal Inch) | 2.5000" |
| Cutting Diameter Minimum (mm) | 63.50mm |
| Cutting Diameter Maximum (Decimal Inch) | 2.5000" |
| Cutting Diameter Maximum (mm) | 63.50mm |
| Cutting Diameter Maximum (mm) | 0.7500" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.9685" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Facing, Plunging, Shouldering, Slotting |
| Coolant Through (Yes/No) | Yes |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 5 |
| Number of Inserts | 5 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
2-1/2"
Cutting Diameter (Decimal Inch):
2.5000"
Cutting Diameter (mm):
63.50mm
Maximum Depth of Cut (Inch):
19/32"
Maximum Depth of Cut (Decimal Inch):
0.5906"
Maximum Depth of Cut (mm):
15mm
Arbor Hole Diameter (Inch):
3/4"
Arbor Hole Diameter (Decimal Inch):
0.7500"
Arbor Hole Diameter (mm):
19.05mm
Series:
MEW;Cutter Style=MEW"
Number of Cutter Inserts:
5
