Features:

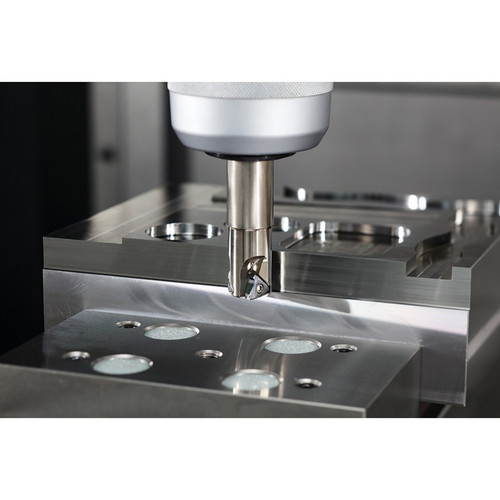

- High performance, economical, multi-function milling cutters
- Low cutting forces and higher rigidity for excellent chatter resistance
- Longer insert and holder tool life
- Can be used in shouldering, slotting, and ramping applications
Product Specifications
| EDP Number | THN08497 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Maximum Depth of Cut (mm) | 46.00mm |
| Cutting Diameter (Decimal Inch) | 0.7874" |
| Cutting Diameter (mm) | 20.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.7874" |
| Cutting Diameter Minimum (mm) | 20.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.7874" |
| Cutting Diameter Maximum (mm) | 20.00mm |
| Connection Diameter (Decimal Inch) | 0.4134" |
| Connection Diameter (mm) | 10.50mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.7362" |
| Contact Surface Diameter Machine Side (mm) | 18.70mm |
| Shank Height (Decimal Inch) | 0.5906" |
| Shank Height (mm) | 15.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 3 |
| Number of Inserts | 3 |
| Shank Type | Modular Connection |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
MEV;Cutting Diameter (Inch)=25/32"""
Cutting Diameter (Decimal Inch):
0.7874"
Cutting Diameter (mm):
20.00mm
Insert Style:
MEV
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
