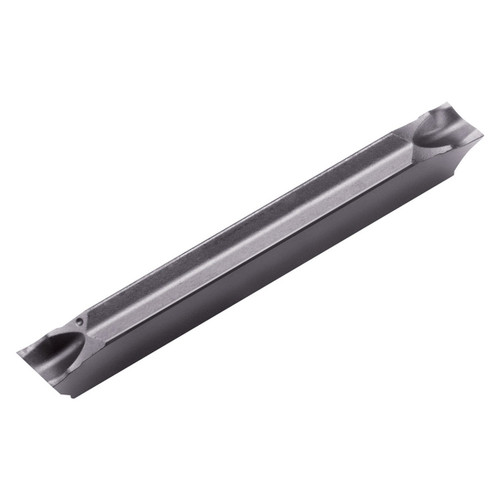

Kyocera Precision Tools TKH10938 | GDM3020R015PF15D PR1215 0.1181" Cutting Width x 0.169" Thickness PVD Coated Carbide Cut-Off Insert

$16.20
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=GDM"
Insert Size:
3020
Lead Angle Direction:
Right-Hand
Cutting Width (Decimal Inch):
0.1181"
Cutting Width (mm):
3.00mm
Manufacturer's Grade:
PR1215
Series:
KGD
SKU:
23238749
Weight:
0.10 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for Cut-Off for Small parts machining
  • 15 Degree lead angle / Low feed / 2-edge
  • 2 Cutting edges
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Application: Superior adhesion resistance and longer tool life for steel and stainless steel machining

Product Specifications
Tool NumberTKH10938
Cutting Width (Decimal Inch)0.1181"
Cutting Width (mm)3.00mm
Cutting Width Minimum (Decimal Inch)0.1181"
Cutting Width Minimum (mm)3.00mm
Cutting Width Maximum (Decimal Inch)0.1181"
Cutting Width Maximum (mm)3.00mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)0.006"
Corner Radius (mm)0.15mm
Thickness (Inch)0.169"
Thickness (mm)4.30mm
ApplicationCut-Off | Small Parts Machining
ChipbreakerPF
Coating ProcessPVD
Cutting RangeMedium
HandRight Hand
Insert Holding MethodClamp
Insert GradePR1215
Insert Size3020
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialSteel (P)
Usage ClassificationLight Interruption
