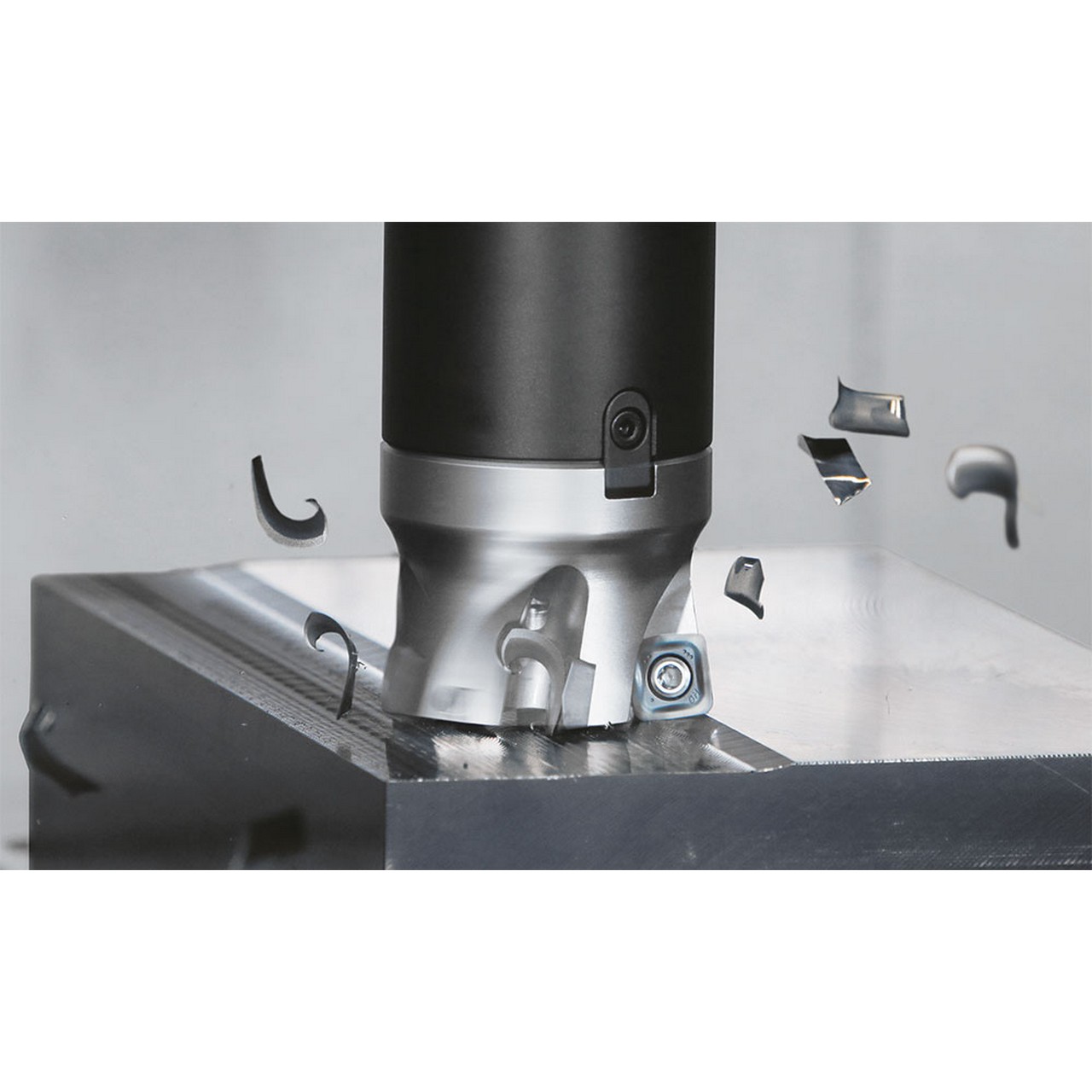

- Insert for high feed, facing, shouldering, slotting, pocketing, ramping, helical milling, plunging
- Honed edge with 4 cutting edges
- MEGACOAT NANO coating technology
- Nano thin multi-layer coating performs with wear resistance and high oxidation resistance
- Application: For gray and nodular cast iron, stable wear resistance and toughness
Product Specifications
| EDP Number | TLA05608 |
| Insert Included Angle (Degree) | 90 Degree |
| Inscribed Circle (Inch) | 0.411" |
| [IC] Inscribed Circle (mm) | 10.45mm |
| [RE] Corner Radius (Inch) | 5/64" |
| [RE] Corner Radius (mm) | 2.00mm |
| [S] Thickness (Inch) | 0.180" |
| [S] Thickness (mm) | 4.58mm |
| Application | Facing | Helical Milling | High Feed | Plunging | Pocketing | Ramping | Shouldering | Slotting |
| Chipbreaker | ER-LD |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
100420
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.4100"
Inscribed Circle (mm):
10.45mm
Thickness (Decimal Inch):
0.1800"
Thickness (mm):
4.58mm
