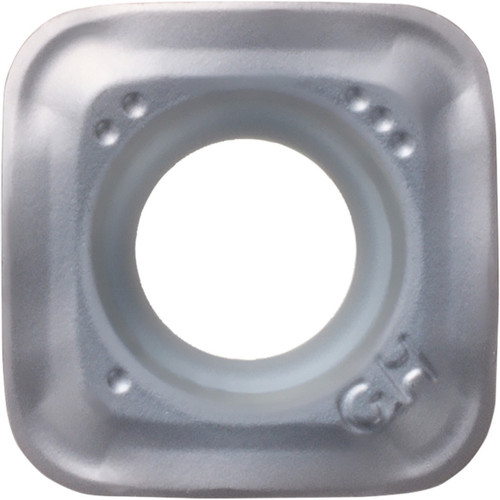

Kyocera Precision Tools TLJ40002 | SOMT100420ERGH PR015S 0.411" Circle Diameter x 0.180" Thickness PVD Coated Carbide Milling Insert

SKU: 23244575 Weight: 0.11 LBS Minimum Purchase: 10 unit
UPC:
$23.40 $13.57
(You save $9.83)
Total Price: $13.57
Shipping: Calculated at Checkout

About This Item

  • Insert for high feed, facing, shouldering, slotting, pocketing, ramping, helical milling, plunging
  • Honed edge/tough edge (Heavy milling )
  • Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
  • Resists heat concentration at the cutting edge to promote stable machining
  • Application: General purpose grade with excellent wear resistance and stability for continuous to light interrupted heat-resistant alloys

Product Specifications
EDP NumberTLJ40002
Insert Included Angle (Degree)90 Degree
Inscribed Circle (Inch)0.411"
[IC] Inscribed Circle (mm)10.45mm
[RE] Corner Radius (Inch)5/64"
[RE] Corner Radius (mm)2.00mm
[S] Thickness (Inch)0.180"
[S] Thickness (mm)4.58mm
ApplicationFacing | Helical Milling | High Feed | Plunging | Pocketing | Ramping | Shouldering | Slotting
ChipbreakerER-GH
Coating ProcessPVD
