Roemheld Run Tee Fitting 37-Degree Flare

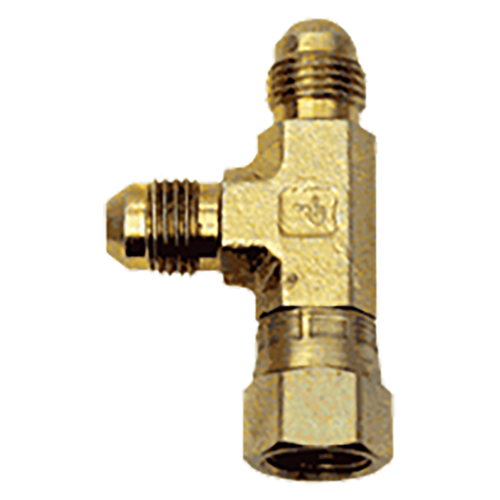

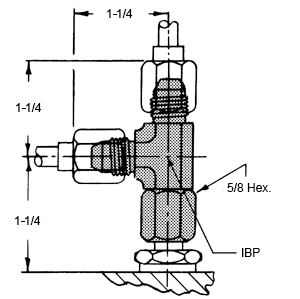

CLR-404-F Run Tee fitting with a female swivel nut that fits on any standard 5/16" male JIC 37° fitting. Two male JIC 37° ends accept standard 5/16" O.D. flared tubing. JIC-standard 37° fittings accept The standard 5/16" O.D. tubing (cut off straight, deburred, and flared) as well as Fixture Hose and Heavy-Duty Hose with 37°-flare swivel nuts. When using tubing, a Tube End fitting (CLR-400-F), consisting of a nut and sleeve, must be placed on each tube end before flaring is completed.
Application Information
Design Considerations & Safety Precautions
7250 psi max imum operating pressure. Use these fittings only with The standard steel tubing and hydraulic hose. The standard tubing is 5/16" O.D. seamless heavy-wall tubing, C1010 steel, cold drawn, fully annealed, 0.065" wall thickness, 22,800 psi minimum burst pressure.Material
Steel. DFARS and RoHS compliant.
Parts Specification
| Maximum Operating Pressure (PSI) | Tubing O.D. Size (Inch) |
| 7500 PSI | 5/16" |
