Roemheld CLR-704-F | 5/16" Tubing OD Size Steel Cross Fitting

Roemheld Cross

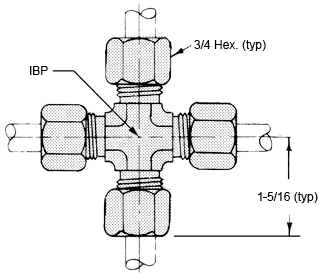

Cross fitting has fThe compression nuts that accept standard 5/16" O.D. tubing. Compression fittings are designed to secure heavy-wall tubing using a bite-type ferrule and compression nut. These fittings accept The standard 5/16" O.D. tubing (cut off straight and deburred) as well as Fixture Hose and Heavy-Duty Hose with compression-type tube ends.

Application Information

Design Considerations & Safety Precautions

7250 psi max imum operating pressure. Use these fittings only with The standard steel tubing and hydraulic hose. The standard tubing is 5/16" O.D. seamless heavy-wall tubing, C1010 steel, cold drawn, fully annealed, 0.065" wall thickness, 22,800 psi minimum burst pressure.

Material

Material	Heat Treat	Finish	DFARS	RoHS
Steel	-	-	Yes	Yes

Parts Specification

Maximum Operating Pressure (PSI)	Tubing O.D. Size (Inch)
7500 PSI	5/16"
