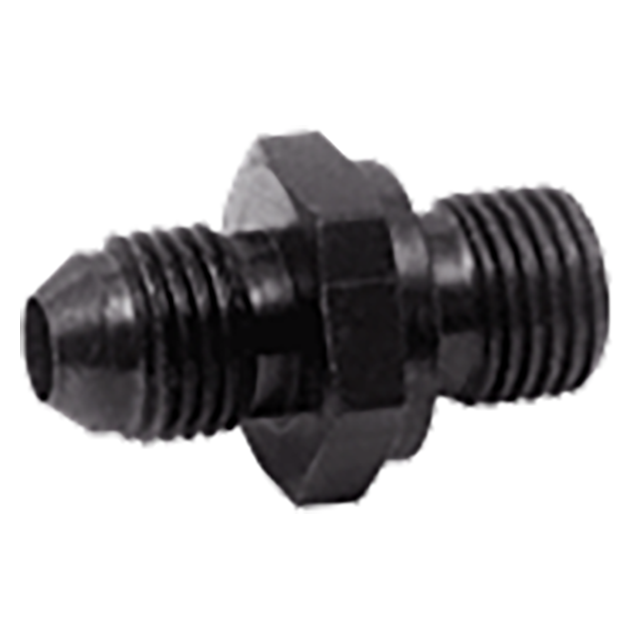

Roemheld CLR-807-F | 5/16" Tubing OD Size Steel Port Fitting

Roemheld 37-Degree Flare

CLR-807-F Straight male fitting for any standard 1/4" BSPP port. Male JIC 37° end accepts standard 5/16" O.D. flared tubing. JIC-standard 37° fittings accept The standard 5/16" O.D. tubing (cut off straight, deburred, and flared) as well as Fixture Hose and Heavy-Duty Hose with 37°-flare swivel nuts. When using tubing, a Tube End fitting (CLR-400-F), consisting of a nut and sleeve, must be placed on each tube end before flaring is completed.

Application Information

Design Considerations & Safety Precautions

7250 psi max
imum operating pressure. Use these fittings only with The standard steel tubing and hydraulic hose. The standard tubing is 5/16" O.D. seamless heavy-wall tubing, C1010 steel, cold drawn, fully annealed, 0.065" wall thickness, 22,800 psi minimum burst pressure.

Material

Steel. DFARS and RoHS compliant.

Parts Specification

Maximum Operating Pressure (PSI)	Fits Port Size	Tubing O.D. Size (Inch)
7500 PSI	1/4 BSPP	5/16"
