Roemheld CLR-304-F | 5/16" Tubing OD Size Steel Cross Fitting

Roemheld Cross 37-Degree Flare

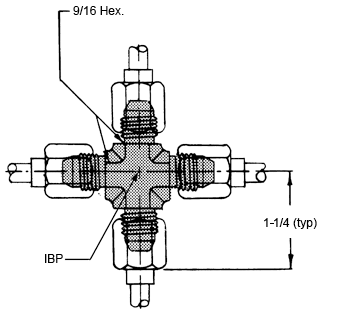

CLR-304-F Cross fitting has fThe male JIC 37° ends that accept standard 5/16" O.D. flared tubing. JIC-standard 37° fittings accept The standard 5/16" O.D. tubing (cut off straight, deburred, and flared) as well as Fixture Hose and Heavy-Duty Hose with 37°-flare swivel nuts. When using tubing, a Tube End fitting (CLR-400-F), consisting of a nut and sleeve, must be placed on each tube end before flaring is completed.

Application Information

Design Considerations & Safety Precautions

7250 psi max imum operating pressure. Use these fittings only with The standard steel tubing and hydraulic hose. The standard tubing is 5/16" O.D. seamless heavy-wall tubing, C1010 steel, cold drawn, fully annealed, 0.065" wall thickness, 22,800 psi minimum burst pressure.

Material

Steel. DFARS and RoHS compliant.

Parts Specification

Maximum Operating Pressure (PSI)	Tubing O.D. Size (Inch)
7500 PSI	5/16"
