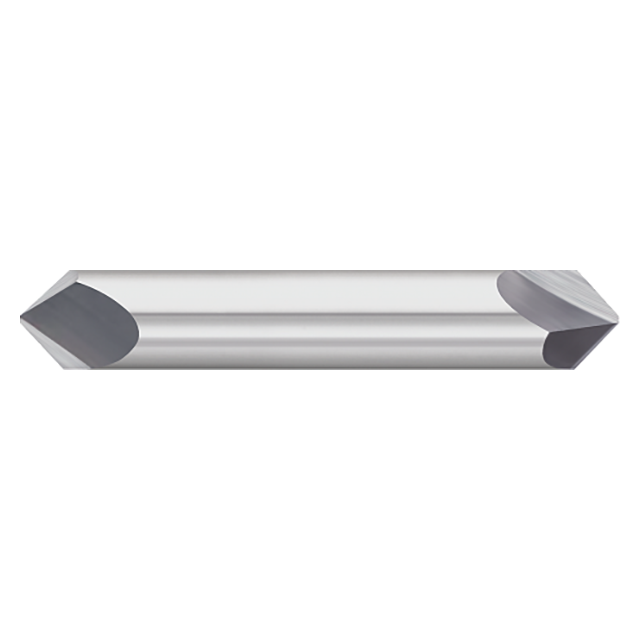

This fully stocked selection of Titan USA Solid Carbide Chamfer Mills features a 2 flute, double ended style and flat tip geometry for increased strength in chamfering and profiling applications.
Features:
- Flat tip (non-cutting) design for increased strength in chamfering and profiling applications
- Double-ended
- 2 flutes
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC87891 |
| Cutting Diameter (Inch) | 0.5000" (1/2) |
| Shank Diameter | 0.5000" (1/2) |
| Overall Length (Inch) | 3.0000" (3) |
| Length of Cut (Inch) | 0.2100" |
| Angle per Side | 45 |
| Number of Flutes | 2 |
| Coating | Uncoated |
| Substrate | Carbide |
| Product Type | Chamfer Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.5000"
Cutter Diameter (mm):
12.70mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Length of Cut (Inch):
17/81"
Length of Cut (Decimal Inch):
0.2100"
Length of Cut (mm):
5.33mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Included Angle:
90 Degree
Number of Flutes:
2
Finish/Coating:
Uncoated
Material:
carbide
interval quantity:
1
