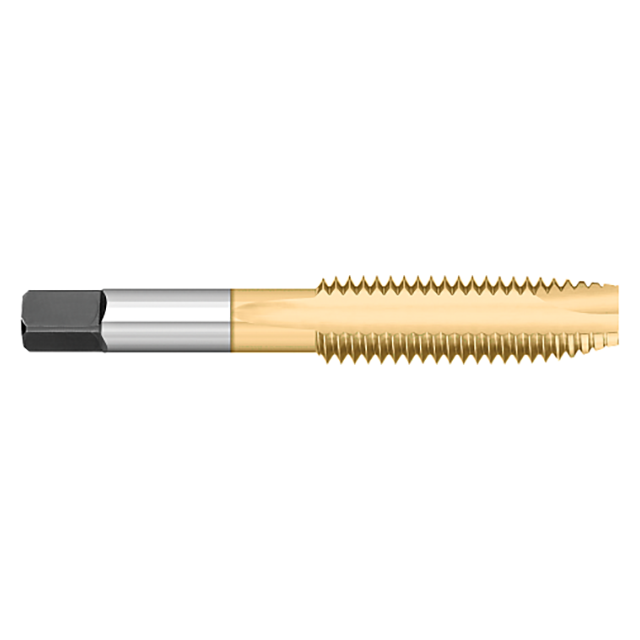

CNC ground in the USA from high speed steel onto blanks that meet ANSI specifications.
Features:
- General purpose spiral point plug taps
- Taps are on blanks that meet ANSI specifications
- TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT99495 |
| Across Flat (Inch) | 0.3600" |
| Length of Cut (Inch) | 1.8125" (1-13/16) |
| End Length (Inch) | 0.5625" (9/16) |
| Shank Diameter (Inch) | 0.4800" |
| Overall Length (Inch) | 3.8125" (3-13/16) |
| Thread Size (Inch) | 5/8"-18 |
| Number of Flutes | 3 |
| Limit | H3 |
| Type | SP/PT Plug |
| Substrate | High Speed Steel |
| Coating | TIN |
| Product Type | Spiral Point Tap |
