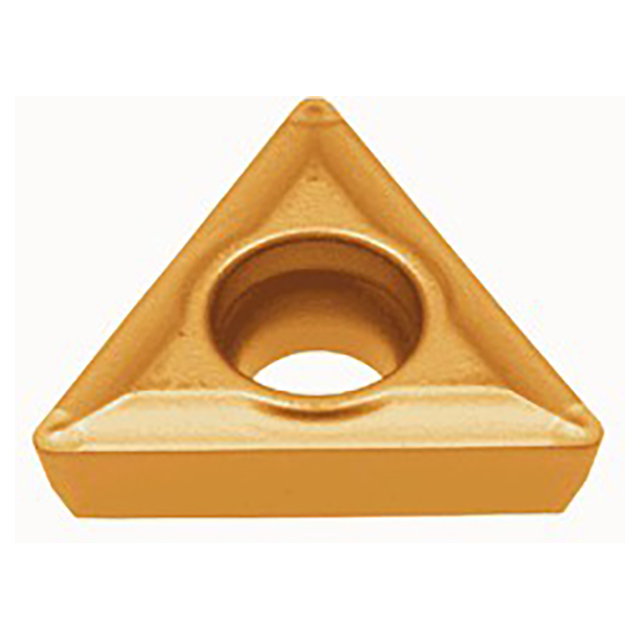

Positive 11 degree relief angle, M class, triangular insert, for finishing to medium cutting.
Product Specifications
| # MFG | 6998631 |
| Corner Radius (Inch) | 0.008" |
| Cutting Edge Length (Inch) | 0.378" |
| Maximum Depth of Cut (Inch) | 0.0787" |
| Fixing Hole Diameter (Inch) | 0.098" |
| Inscribed Circle Diameter (Inch) | 0.219" |
| Insert Thickness (Inch) | 0.094" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0196" |
| Minimum Turning Feed (Inch) | 0.0039"/rev |
| Cutting Edge Material | Cermet |
| Grade | NS9530 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel, Stainless Steel, Cast Iron |
| Chip Breaker Type | 23 |
| Major Clearance Angle | 11 Degree |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
7/32"
Inscribed Circle (Decimal Inch):
0.2190"
Inscribed Circle (mm):
5.56mm
Thickness (Inch):
3/32"
Corner Radius (Decimal Inch):
0.0080"
interval quantity:
10
