Product Specifications

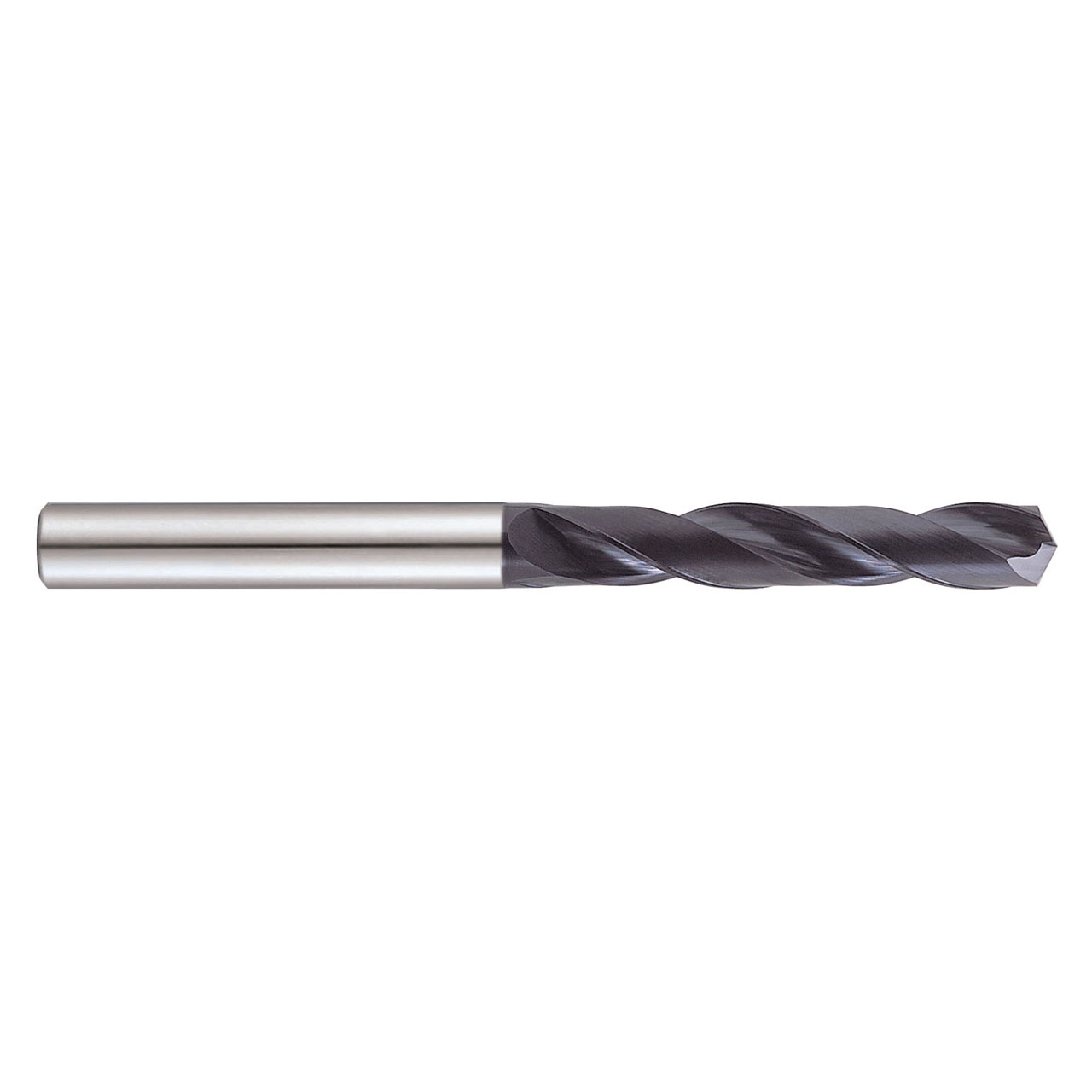

| Manufacturer Part Number | DTX414034 |
| Cutting Diameter (Inch) | 17/32" |
| Cutting Diameter (Decimal Inch) | 0.531" |
| Cutting Diameter (mm) | 13.49mm |
| Shank Diameter (Inch) | 17/32" |
| Shank Diameter (Decimal Inch) | 0.531" |
| Shank Diameter (mm) | 13.49mm |
| Flute Length (Inch) | 3-11/32" |
| Flute Length (Decimal Inch) | 3.343" |
| Flute Length (mm) | 84.93mm |
| Overall Length (Inch) | 5-11/16" |
| Overall Length (Decimal Inch) | 5.687" |
| Overall Length (mm) | 144.46mm |
| Point Length (Decimal Inch) | 0.096" |
| Point Length (mm) | 2.46mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Cutting Direction | Right Hand |
| Coating | RCH Coated |
| Material | Carbide |
| Product Type | Dream Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
17/32"
Cutting Diameter (Decimal Inch):
0.5310"
Cutting Diameter (mm):
13.49mm
Shank Diameter (Inch):
17/32"
Shank Diameter (Decimal Inch):
0.5310"
Shank Diameter (mm):
13.49mm
Flute Length (Inch):
3-11/32"
Flute Length (Decimal Inch):
3.3430"
Flute Length (mm):
84.93mm
Overall Length (Inch):
5-11/16"
Overall Length (Decimal Inch):
5.6870"
Overall Length (mm):
144.46mm
Point Length (Inch):
5/52"
Point Length (Decimal Inch):
0.0960"
Point Length (mm):
2.46mm
Cutting Direction:
Right Hand
Shank Tolerance:
h6
Number of Flutes:
2
Finish/Coating:
RCH Coated
Material:
Carbide
interval quantity:
1
