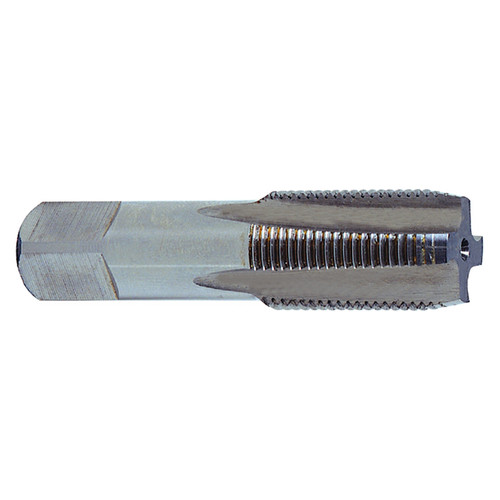

Product Specifications
| EDP Number | R9200 |
| Size | 1/8" |
| Pitch | 27 TPI |
| Diameter (Decimal Inch) | 0.1250" |
| Diameter (mm) | 3.18mm |
| Overall Length (Decimal Inch) | 2.1300" |
| Overall Length (mm) | 54.10mm |
| Thread Length (Decimal Inch) | 0.7500" |
| Thread Length (mm) | 19.05mm |
| Square Length (Decimal Inch) | 0.3800" |
| Square Length (mm) | 9.65mm |
| Shank Diameter (Decimal Inch) | 0.4375" |
| Shank Diameter (mm) | 11.11mm |
| Square Size (Decimal Inch) | 0.3280" |
| Square Size (mm) | 8.33mm |
| Drill Size (Decimal Inch) | 0.3320" |
| Drill Size (mm) | 8.43mm |
| Useable Length (Decimal Inch) | 0.7500" |
| Useable Length (mm) | 19.05mm |
| Number of Flutes | 4 |
| Series | R9 |
| Chamfer Length | 2P-3P |
| Thread Series | NPTF |
| Coating | Hard Slick |
| Material | HSSE-V3 |
| Blank Standard | 311 |
| Helix Angle (Degree) | 0 Degree |
| Length/Diameter | 2.0 x D |
| Chamfer Type | Modified Bottoming |
| Tap Type | NPT(F) Taper Pipe Tap |
| Shank Type | Square |
| Trade Name | YG-Pipe Taps |
| Product Type | Straight Flute Pipe Tap |
