Excellent choice of carbide with minimum micro-grain size made to handle all heat release from the hard metal YG-1 special CVD coating.
Features:
Product Specifications

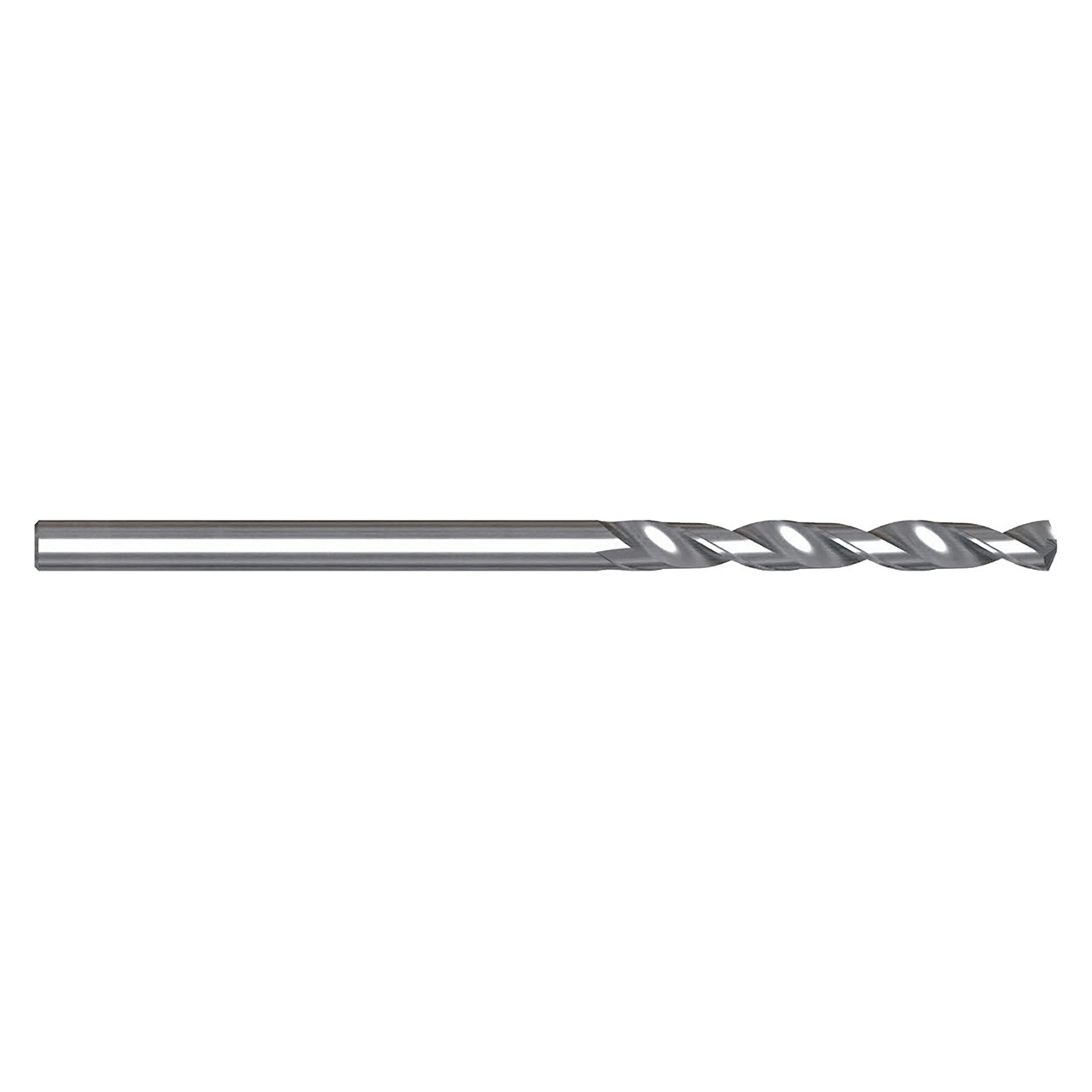

| Manufacturer Part Number | UDR5A1AC0189 |
| Drill Diameter (Inch) | 7/37" |
| Drill Diameter (Decimal Inch) | 0.1890" |
| Drill Diameter (mm) | 4.80mm |
| Drill Diameter (Wire) | #12 |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Flute Length (Inch) | 1-52/71" |
| Flute Length (Decimal Inch) | 1.7323" |
| Flute Length (mm) | 44.00mm |
| Overall Length (Inch) | 3-8/35" |
| Overall Length (Decimal Inch) | 3.2283" |
| Overall Length (mm) | 82.00mm |
| Number of Flutes | 2 |
| Series | UDR5A1AC |
| Point Angle | 135 Degree |
| Shank Type | Plain |
| Application | CFRP/Titanium stacks/GFRP |
| Machine | CNC Ganty, Robot End-Effectors |
| Operation | Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
7/37"
Drill Bit Size (Decimal Inch):
0.1890"
Drill Bit Size (mm):
4.80mm
Drill Bit Size (Wire):
#12
Drill Point Angle:
135 Degree
Material:
Micron Grain Carbide
Shank Type:
Plain
interval quantity:
1
