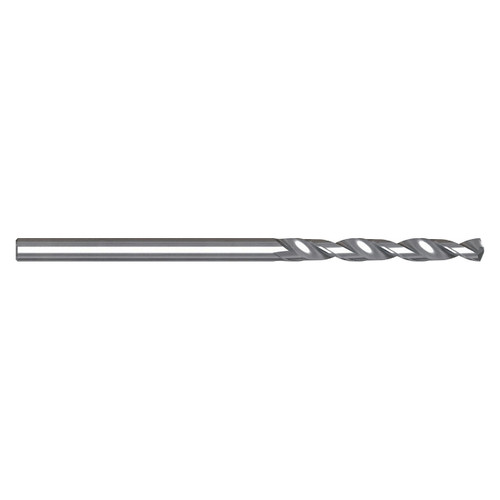

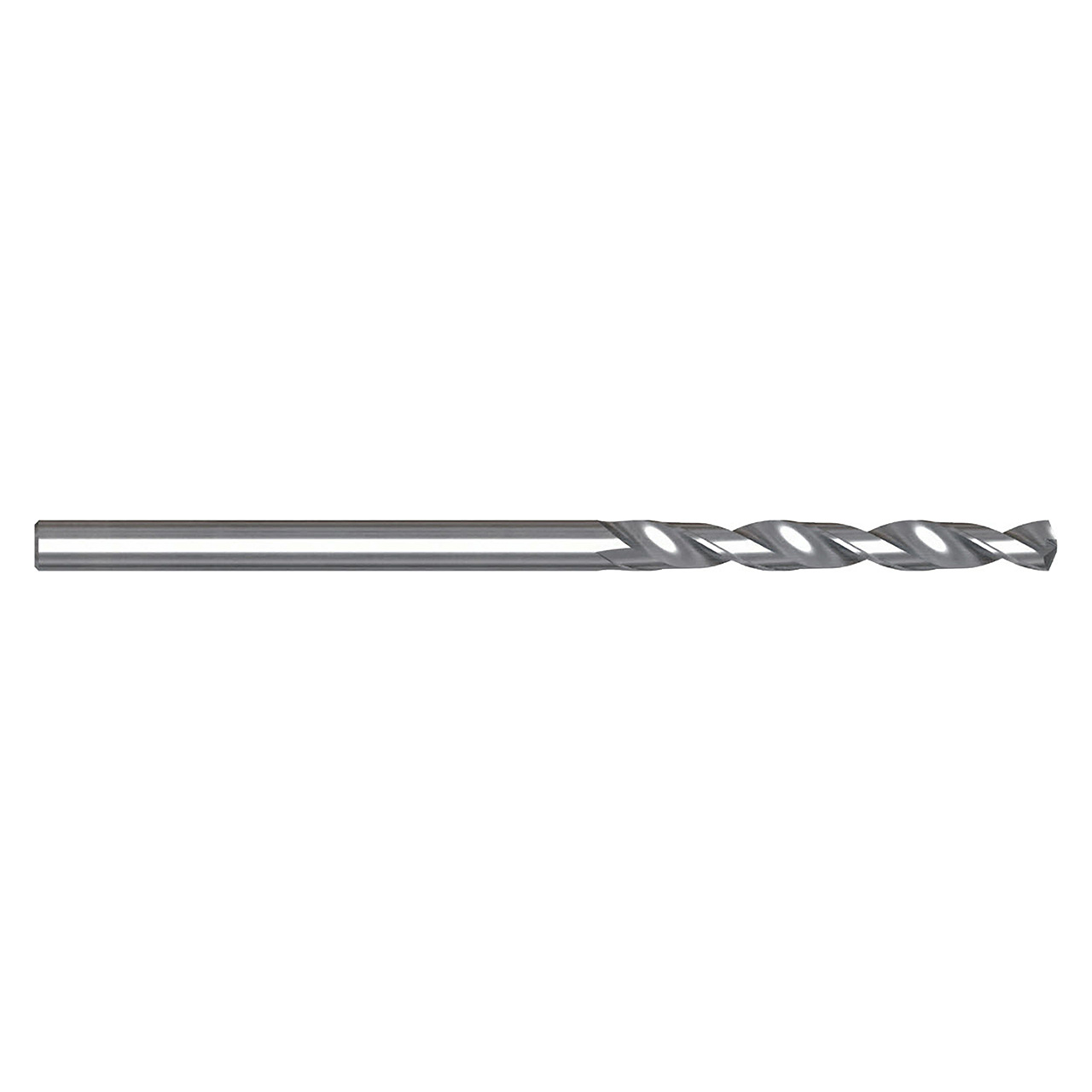

Excellent choice of carbide with minimum micro-grain size made to handle all heat release from the hard metal YG-1 special CVD coating.
Features:
| Manufacturer Part Number | UDR5A1AC0201 |
| Drill Diameter (Decimal Inch) | 0.2010" |
| Drill Diameter (mm) | 5.11mm |
| Drill Diameter (Wire) | #7 |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Flute Length (Decimal Inch) | 1.7323" |
| Flute Length (mm) | 44.00mm |
| Overall Length (Decimal Inch) | 3.2283" |
| Overall Length (mm) | 82.00mm |
| Number of Flutes | 2 |
| Series | UDR5A1AC |
| Point Angle | 135 Degree |
| Shank Type | Plain |
| Application | CFRP/Titanium stacks/GFRP |
| Machine | CNC Ganty, Robot End-Effectors |
| Operation | Drilling |
