Product Specifications
| Manufacturer Part Number | VS057 |
| Body Diameter 1 (Inch) | 1-1/16" |
| Body Diameter 1 (Decimal Inch) | 1.0630" |
| Body Diameter 1 (mm) | 27.00mm |
| Connection Machine Side (mm) | 31.75mm |
| Connection Work Side (Decimal Inch) | 0.750" |
| Connection Machine Side (Decimal Inch) | 1.2500" |
| Connection Machine Side (Inch) | 1-1/4" |
| Connection Work Side (Inch) | 0.750" |
| Connect Work Side (mm) | 19.05mm |
| Overall Length (Inch) | 6-3/10" |
| Overall Length (Decimal Inch) | 6.3000" |
| Overall Length (mm) | 160.02mm |
| Clamping Length (Inch) | 1-35/57" |
| Clamping Length (Decimal Inch) | 1.6142" |
| Clamping Length (mm) | 41.00mm |
| Connection Bore Depth (Inch) | 2-2/23" |
| Connection Bore Depth (Decimal Inch) | 2.0666" |
| Connection Bore Depth (mm) | 53.00mm |
| Thread Diameter Size | M16x1.00mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |

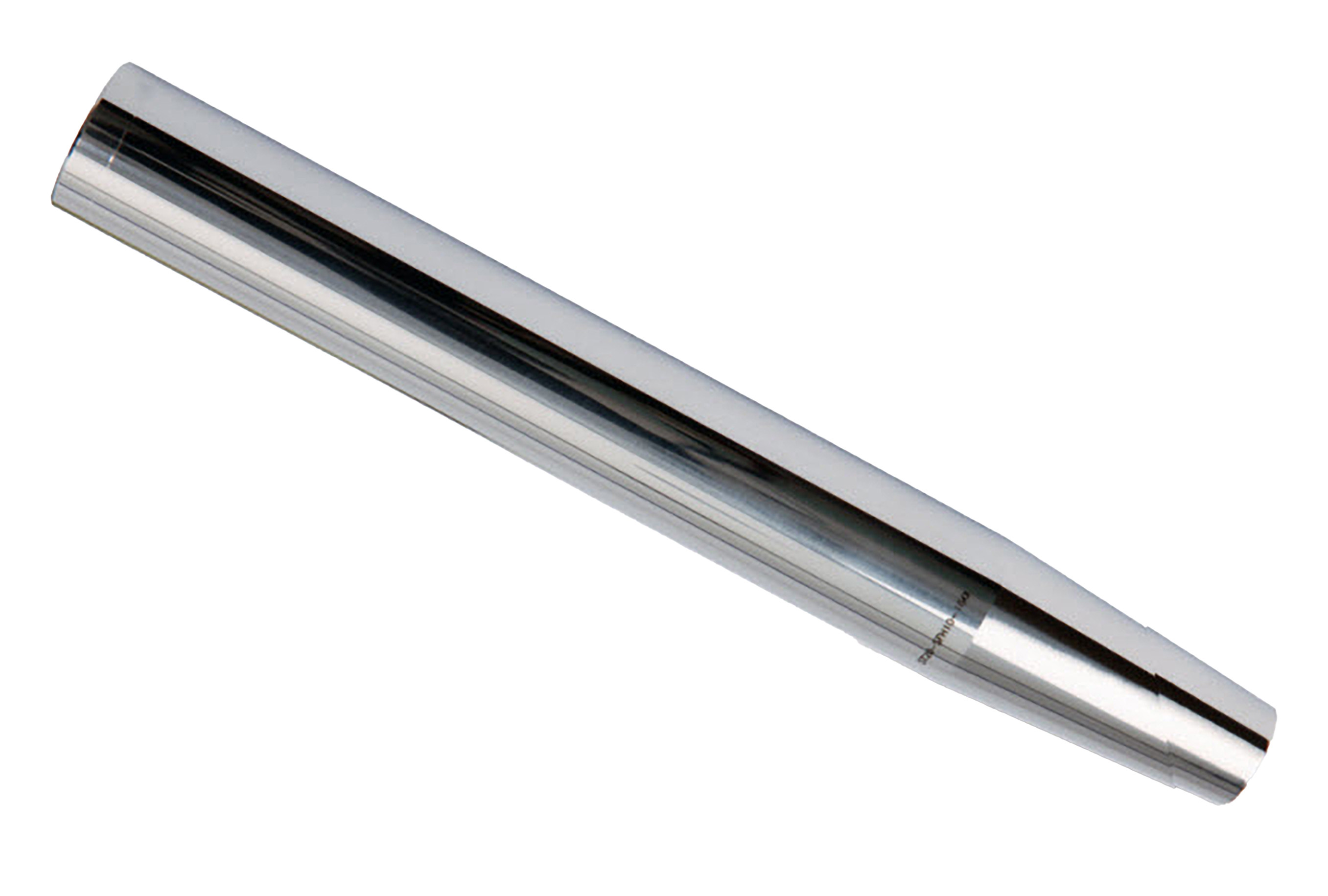

| Product Type | Shrink-Fit Extension |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
