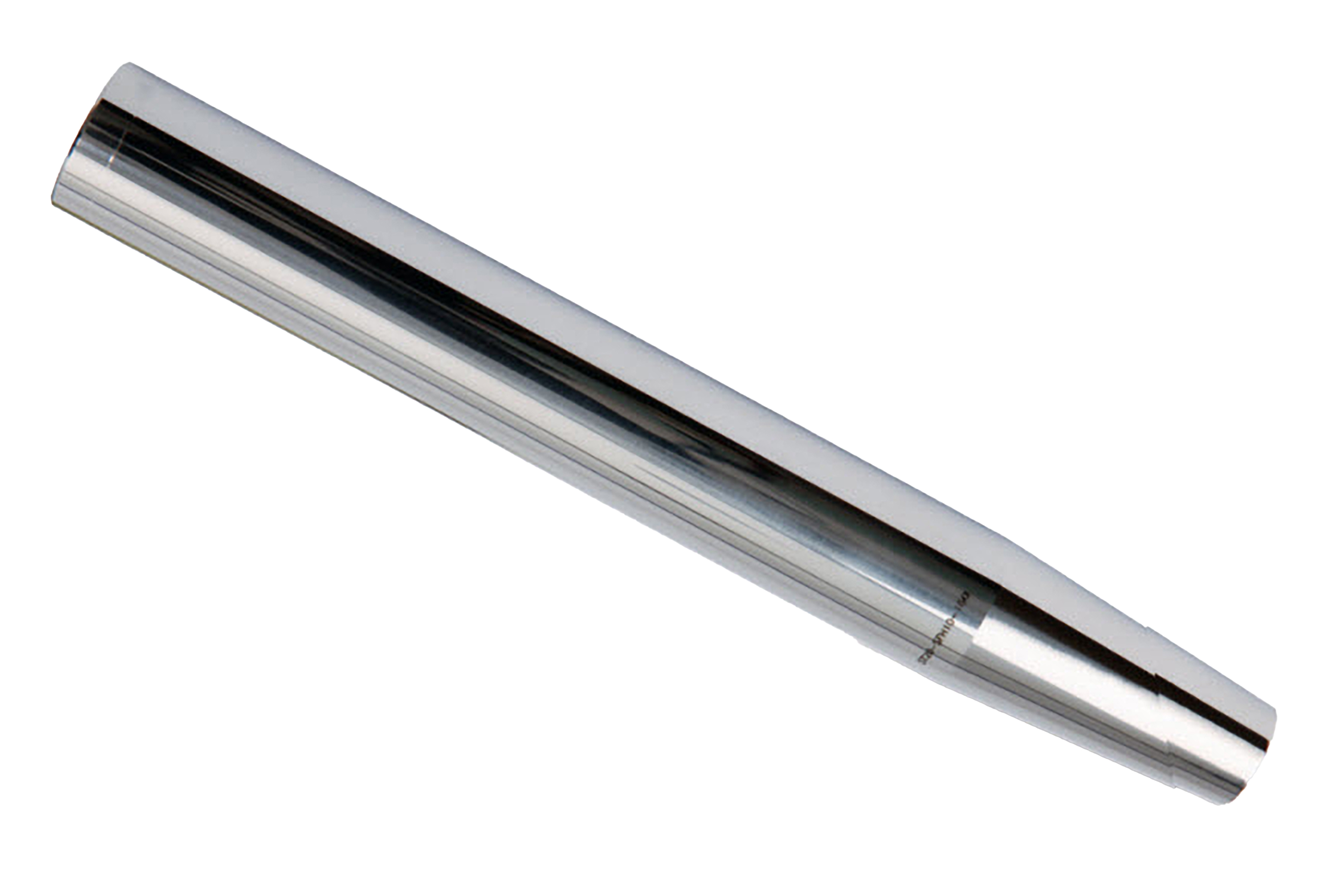

| Manufacturer Part Number | VS055 |
| Body Diameter 1 (Inch) | 86/91" |
| Body Diameter 1 (Decimal Inch) | 0.9450" |
| Body Diameter 1 (mm) | 24.00mm |
| Connection Machine Side (mm) | 31.75mm |
| Connection Work Side (Decimal Inch) | 0.500" |
| Connection Machine Side (Decimal Inch) | 1.2500" |
| Connection Machine Side (Inch) | 1-1/4" |
| Connection Work Side (Inch) | 0.500" |
| Connect Work Side (mm) | 12.70mm |
| Overall Length (Inch) | 6-3/10" |
| Overall Length (Decimal Inch) | 6.3000" |
| Overall Length (mm) | 160.02mm |
| Clamping Length (Inch) | 1-1/2" |
| Clamping Length (Decimal Inch) | 1.4961" |
| Clamping Length (mm) | 38.00mm |
| Connection Bore Depth (Inch) | 1-13/14" |
| Connection Bore Depth (Decimal Inch) | 1.9991" |
| Connection Bore Depth (mm) | 49.00mm |
| Thread Diameter Size | M10x1.00mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |
| Product Type | Shrink-Fit Extension |
