| Manufacturer Part Number | VS515M |
| Body Diameter 1 (Inch) | 1-1/16" |
| Body Diameter 1 (Decimal Inch) | 1.0630" |
| Body Diameter 1 (mm) | 27.00mm |
| Connection Machine Side (mm) | 32.00mm |
| Connection Work Side (Decimal Inch) | 0.630" |
| Connection Machine Side (Decimal Inch) | 1.2598" |
| Connection Machine Side (Inch) | 1-20/77" |
| Connection Work Side (Inch) | 17/27" |
| Connect Work Side (mm) | 16.00mm |
| Overall Length (Inch) | 6-3/10" |
| Overall Length (Decimal Inch) | 6.2992" |
| Overall Length (mm) | 160.00mm |
| Body Length (Inch) | 1-1/4" |
| Body Length (Decimal Inch) | 2.0779" |
| Body Length (mm) | 31.77mm |
| Clamping Length (Inch) | 1-15/28" |
| Clamping Length (Decimal Inch) | 1.5354" |
| Clamping Length (mm) | 39.00mm |
| Connection Bore Depth (Inch) | 2" |
| Connection Bore Depth (Decimal Inch) | 2.0779" |
| Connection Bore Depth (mm) | 51.00mm |
| Thread Diameter Size | M12x1.00mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |

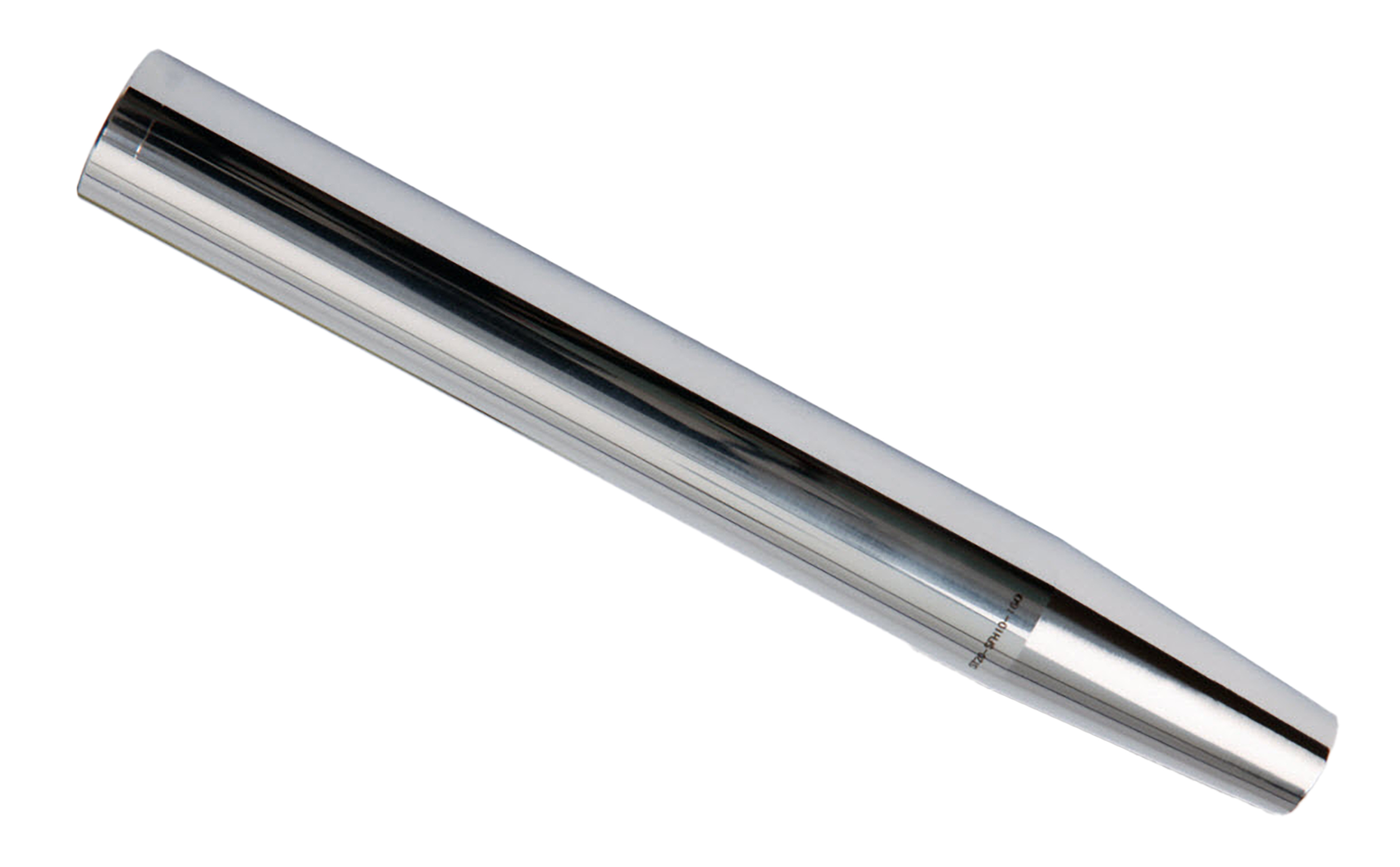

| Product Type | Shank Shrink Fit Extension |
