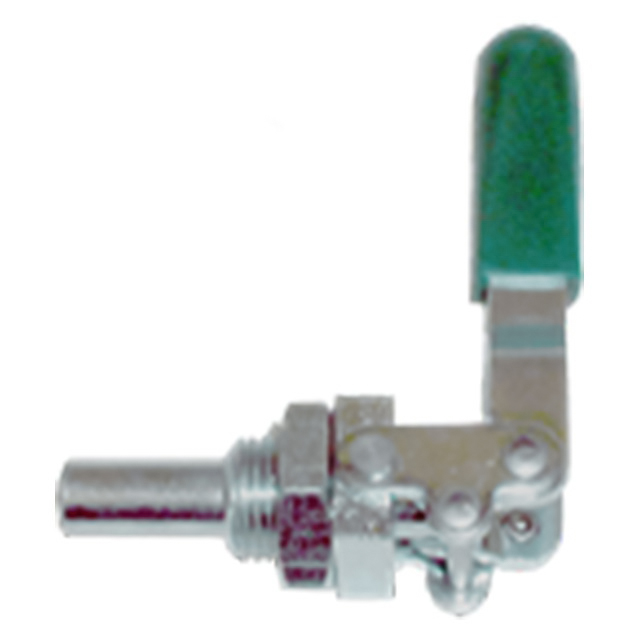

Threaded Body-CL-150-TPC Series
CL-150-TPC Series (200 lbs.)
Tapped Plunger

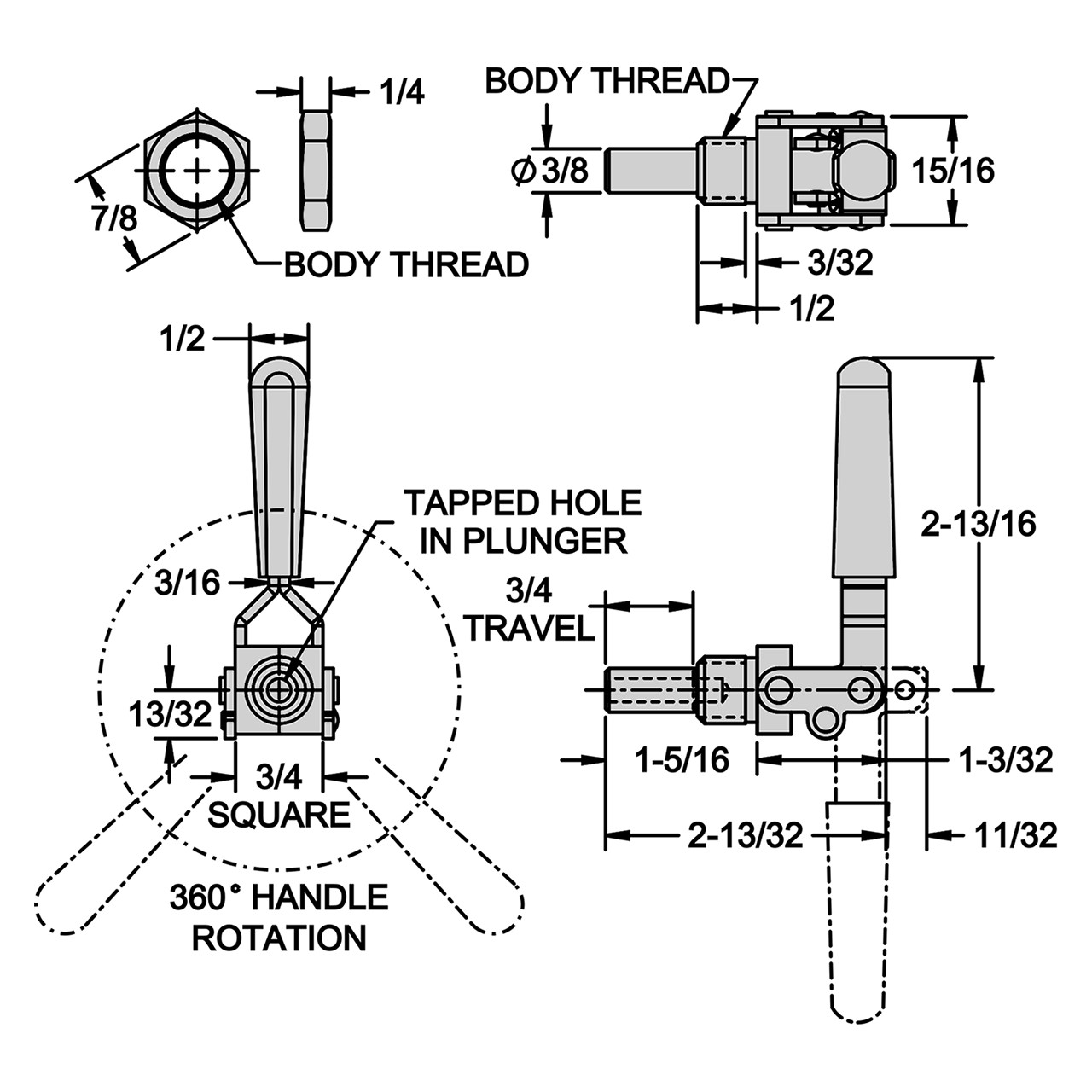

Compact plunger clamp for mounting through panels, plates, or angle brackets. Install in a 5/8"-Diameter (Inch)meter drilled hole or a 5/8-18 tapped hole (M16x1.5 in metric), securing with the locknut provided. Rotate clamp to position handle anywhere within 360°. Locks in extended or retracted position. 3/4" plunger travel. Plunger is tapped to accept any 1/4-20 spindle (M6 in metric). 200 lbs. holding capacity.
Clamping Action
Clamped Position (Push)
Open Position (Push) and Clamped Position (Pull)
Material
Stainless Steel | |||||
Item | Material | Heat Treat | Finish | DFARS | RoHS |
Clamp Body | 300-Series Stainless | - | - | ✔ | ✔ |
Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
Description | Tapped Hole In Plunger | Body Thread | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
Tapped Plunger, Threaded Body | 1/4-20 | 5/8-18 | 200lbs. | 0.4lbs. |
