Carr Lane CL-150-TPC | 5/8"-18 Threaded Body

SKU: 50018679 Weight: 0.20 LBS Minimum Purchase: 1 unit
UPC:
$21.02
Shipping: Calculated at Checkout

About This Item

Threaded Body-CL-150-TPC Series

CL-150-TPC Series (200 lbs.)
Tapped Plunger

Compact plunger clamp for mounting through panels, plates, or angle brackets. Install in a 5/8"-Diameter (Inch)meter drilled hole or a 5/8-18 tapped hole (M16x1.5 in metric), securing with the locknut provided. Rotate clamp to position handle anywhere within 360°. Locks in extended or retracted position. 3/4" plunger travel. Plunger is tapped to accept any 1/4-20 spindle (M6 in metric). 200 lbs. holding capacity.

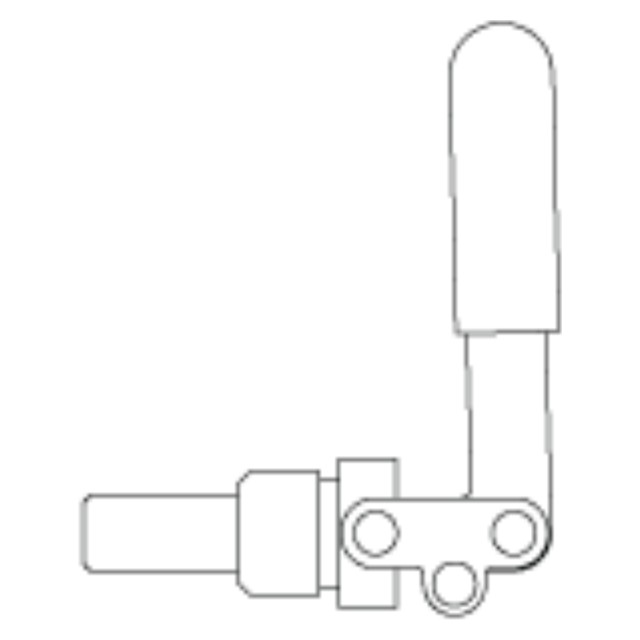

Clamping Action

Clamped Position (Push)



Open Position (Push) and Clamped Position (Pull)

Material

STEEL
Item Material Heat Treat Finish DFARS RoHS
Clamp Body 1215, 1008, 1010, and/or 1018 Steel - Zinc plated clear chromate ✔ ✔
Rivets 400-Series Stainless - - ✔ ✔
Handle Vinyl - - ✔ ✔

Parts Specification

Description Tapped Hole In Plunger Body Thread Holding Capacity (lbs.) Shipping Weight (lbs.)
Tapped Plunger, Threaded Body 1/4-20 5/8-18 200lbs. 0.4lbs.
