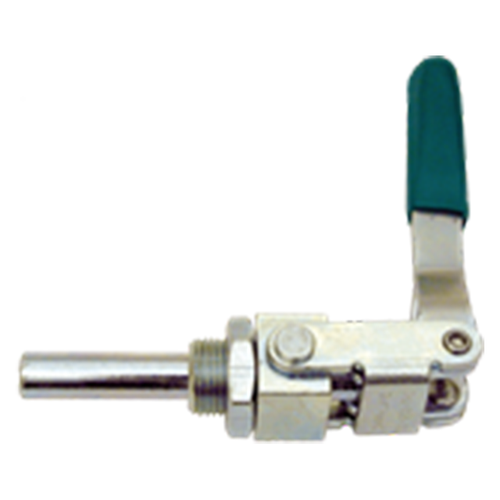

Carr Lane CL-250-TPC | 3/4"-16 Threaded Body

SKU: 50018683 Weight: 0.59 LBS Minimum Purchase: 1 unit
UPC:
$23.45
Shipping: Calculated at Checkout

About This Item

CL-250-TPC Series-300lbs.

Tapped Plunger

Compact plunger clamp for mounting through panels, plates, or angle brackets. Install in a 3/4"-Diameter (Inch)meter drilled hole or a 3/4-16 tapped hole (M20x1.5 in metric), securing with the locknut provided. Rotate clamp to position handle anywhere within 360°. Locks in extended or retracted position. 1-1/2" plunger travel. Plunger is tapped to accept any 5/16-18 spindle (M8 in metric).

Clamping Action

Clamped Position (Push)

Open Position (Push) and Clamped Position (Pull)

Accessories

An optional steel mounting bracket for flanged mounting.

Material

Steel
ItemMaterialHeat TreatFinishDFARSRoHS
Clamp Body1215, 1008, 1010, and/or 1018 Steel-Zinc plated clear chromate✔✔
Rivets400-Series Stainless--✔✔
HandleVinyl--✔✔

Parts Specification

DescriptionTapped Hole In PlungerBody ThreadHolding Capacity (lbs.)Shipping Weight (lbs.)
Tapped Plunger, Threaded Body5/16-183/4-16300lbs.0.7lbs.
