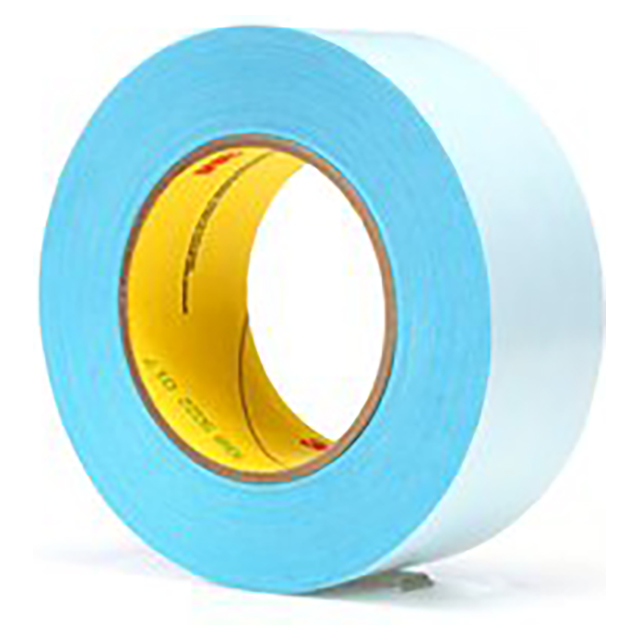

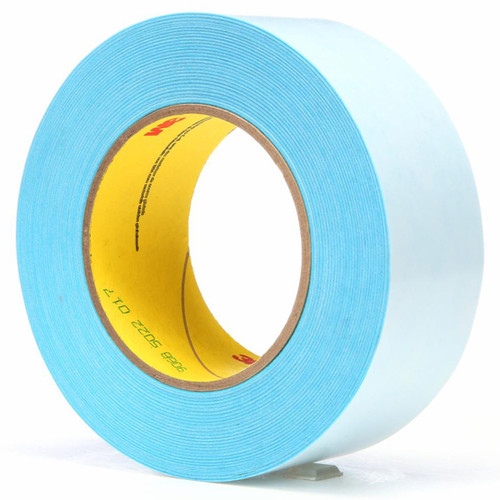

3M Membrane Switch Spacer Double Linered 9045MP features 3M High Performance Acrylic Adhesive 200MP, formulated for excellent shear strength, on a 1 mil PET film carrier. Adhesive withstands repeated switch actuation and forms clean edges for precise slitting and die-cutting. Heavy 94# PCK paper liners resist humidity, curling, tunneling and buckling and add stability for improved processing.
Product Specifications
| Manufacturer Part Number | 7000049681 |
| Back Side Adhesive Thickness(mil) | 2.0mil |
| Back Side Adhesive Thickness (mm) | 0.05mm |
| Overall Length (Decimal Inch) | 36.000" |
| Overall Length (mm) | 914.40mm |
| Overall Width (Decimal Inch) | 24.000" |
| Overall Width (mm) | 609.60mm |
| Primary Liner Thickness (mil) | 7.0 mil |
| Primary Liner Thickness (mm) | 0.18mm |
| Total Tape Thickness without Liner (mil) | 5.0 mil |
| Total Tape Thickness without Liner (mm) | 0.13mm |
| Face Side Adhesive Thickness (mil) | 2.0mil |
| Face Side Adhesive Thickness (mm) | 0.05mm |
| Primary Liner Color | White |
| Product Color | Transparent |
| Product Type | Switch Spacer Tape |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
3M
Width (Inch):
24"
Width (Decimal Inch):
24.0000"
Width (mm):
609.60mm
Thickness (Decimal Inch):
0.0051"
Thickness (mm):
0.13mm
Color:
Transparent
interval quantity:
1
