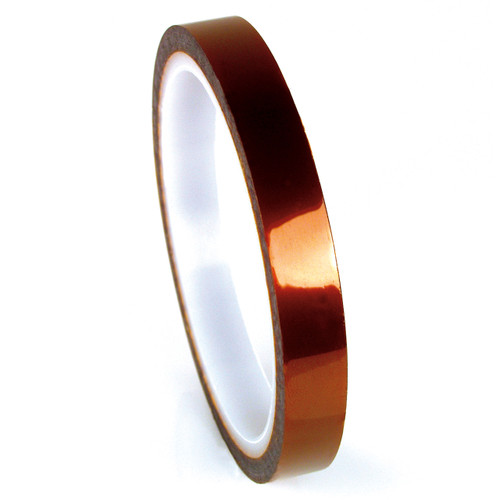

3M 7000132650 | 1205-3/8"X36YD 36 yd x 0.375" Width x 3.2 mil Thickness Polyimide Film Electrical Tape

$25.18
Ships:
From Manufacturer
Brand:
3M
Length (yd):
36 yd
Width (Inch):
3/8"
Width (Decimal Inch):
0.3750"
Width (mm):
9.53mm
Color:
Amber
interval quantity:
24
Ships:
From Manufacturer
SKU:
96003638
UPC:
 00054007274742
Weight:
3.08 LBS
Minimum Purchase:
24 units
Shipping:
Free Shipping

3M polyimide film electrical tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of 40 to 311 °F ( 40 to 155 °C) without the loss of electrical properties and tensile strength.

3M electrical tape 1205 has a pressure sensitive, acrylic adhesive that offers optimized adherence. This tape is designed for anchoring leads/terminal boards. It is ideal for use as wave solder masking tape in a printed circuit board assembly. This flame retardant tape is highly resistant to heat and solvents. UL Listed and RoHS 2011/65/EU Compliant.

Features
  • Highly conformable with a pressure-sensitive, acrylic adhesive
  • Flame-retardant and has polyimide backing
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Designed for anchoring leads and terminal boards
  • Withstands a temperature rating of -40 to 311 °F (-40 to 155 °C)
  • UL listed and RoHS compliant
