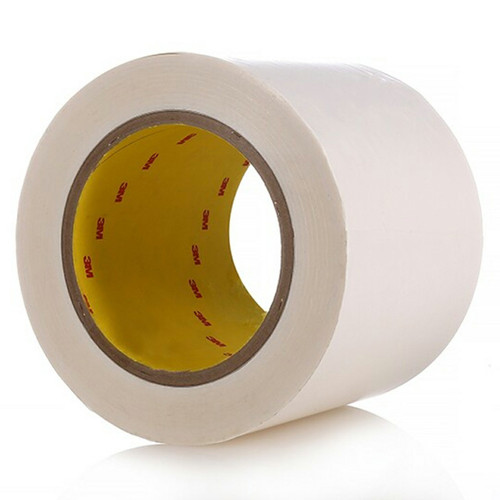

3M double coated tape 9828 features a thin film carrier and a medium-firm acrylic adhesive that works well on many plastics and foams. 3M adhesive 340 provides good initial adhesion and holding power to a wide variety of materials including HSE plastics. The 0.5 mil polyester carrier adds dimensional stability and improved handling during slitting and die cutting operations.
Bonds a Range of Materials, Including HSE Plastics and Foams- A thin, consistent alternative to glue, 3M Double Coated Tape 9828 can be used for foam, fabric and gasket attachment. This tape offers long-term temperature performance up to 120°F (49°C). A clear 0.5 mil polyester film carrier between adhesive layers adds dimensional stability to foams and other substrates and provides easier handling during slitting and die-cutting. 3M Adhesive 340 is applied to the liner side of the film at 1.5 mils and at 2.0 mils on the face side for effective wet-out. The white 55# densified kraft paper liner is compatible with rotary die-cutting.
- Double coated film tapes with 3M Adhesive 340 are ideal for applications where a combination of high initial adhesion and good shear strength for a wide variety of materials, including many plastics and foams, is required.
- General purpose foam lamination
- General purpose lamination for fabricated parts
- Gasket attachment
- Medium-firm acrylic adhesive delivers good adhesion to many plastics and foams
- 0.5 mil clear polyester (PET) film carrier adds dimensional stability and improved handling
- 55# densified kraft liner is compatible with rotary die cutting
- Adhesive on both sides supplies high initial adhesion and high tack to high surface energy (HSE) substrates
Product Specifications
| Manufacturer Part Number | 7010334478 |
| Adhesive Type | Adhesive 340 |
| Core Size (Decimal Inch) | 3.000" |
| Indoor/Outdoor | Both |
| Master Size Length (mm) | 164.60mm |
| Overall Length | 60.000yd |
| Overall Thickness | 3.300mil |
| Overall Width (Decimal Inch) | 2.000" |
| Primary Liner | 55# Densified Kraft Paper (DK) |
| Primary Liner Thickness (mm) | 0.08mm |
| Product Color | Transparent |
| Product Number | 9828 |
| Product Type | Splicing & Tabbing Tape |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
3M
Adhesive Type:
Adhesive 340
Core Size (Inch):
3"
Core Size (Decimal Inch):
3.0000"
Core Size (mm):
76.20mm
Master Size Length (Inch):
6-31/64"
Master Size Length (Decimal Inch):
6.4800"
Master Size Length (mm):
164.60mm
Color:
Transparent
Material:
High Surface Energy
Primary Liner Thickness (mm):
0.08mm
Overall Width (Inch):
2"
Overall Width (Decimal Inch):
2.0000"
Overall Width (mm):
50.80mm
Overall Length (yd):
60.000yd
Overall Length (mm):
54.86mm
Overall Thickness (mil):
3.300mil
