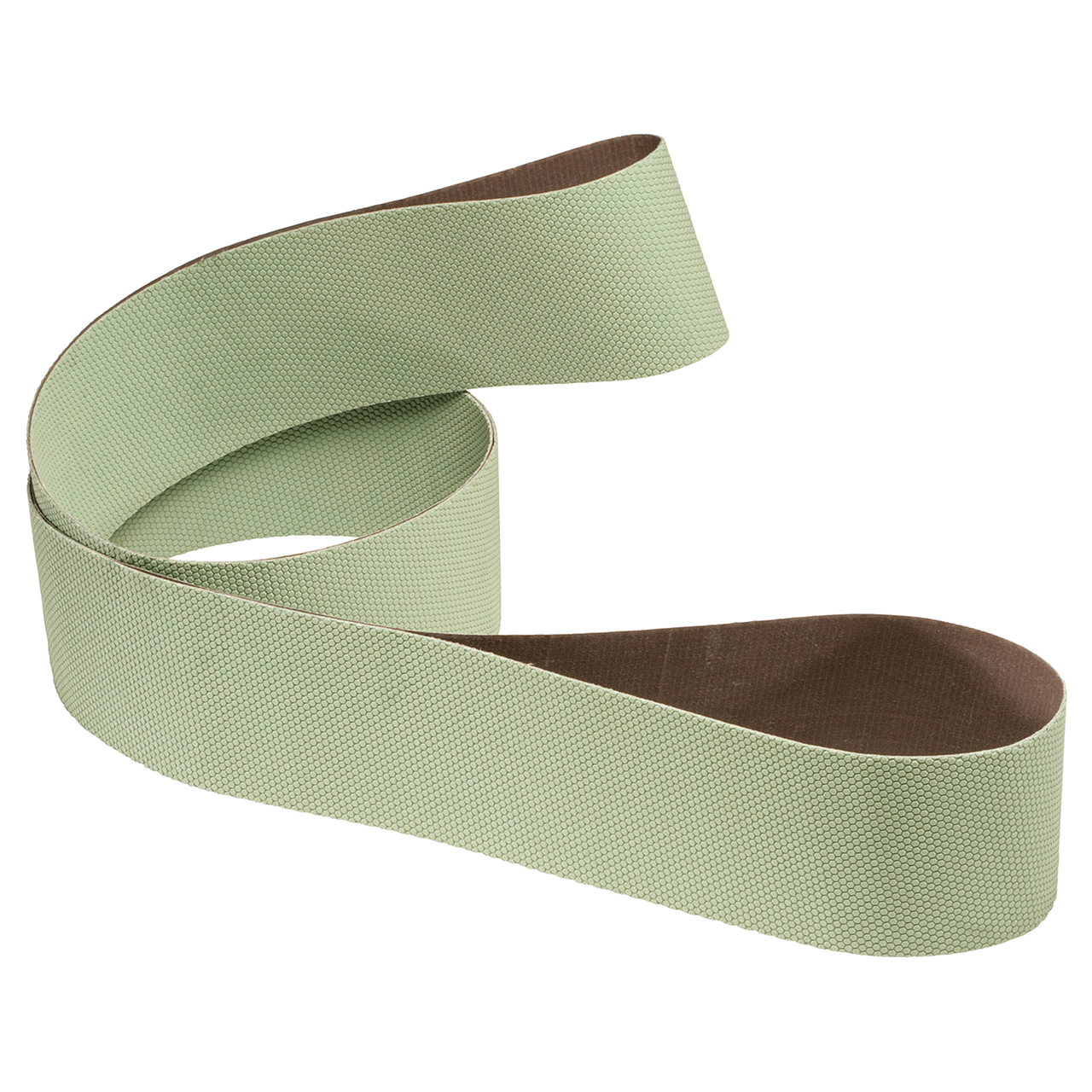

3M 7010360876 | 663FC x Non Pertinent Grit x 137.000" OAL Diamond Cloth Belt

$2,953.12
Ships:
From Manufacturer
Brand:
3M
Material:
Diamond
Backing Material:
Cloth
Belt Width (Inch):
4"
Belt Width (Decimal Inch):
4.0000"
Belt Width (mm):
101.60mm
Overall Length (Inch):
137"
Overall Length (Decimal Inch):
137.0000"
Overall Length (mm):
3479.80mm
interval quantity:
1
Ships:
From Manufacturer
SKU:
45042442
UPC:
51141274201
Weight:
12.80 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

3M Trizact diamond cloth belt 663FC represents the "next generation" in abrasive technology. It combines the predictable dimensioning of bonded wheels with the speed, consistency and ease of use of 3M abrasive belts. This unique hybrid helps you achieve a smoother finish in less time.

Designed for grinding materials to final dimension, 3M Trizact diamond cloth belts 663FC can tackle hard-to-grind materials including ceramics, carbides, chilled iron and composites. They also work well for stripping old thermal spray coating during the refurbishment process. These belts cut up to 70% faster than bonded wheels – without chatter. And because they are easy to use, even less-experienced operators can achieve consistent, effective stock removal throughout the life of the belt.

3M Trizact diamond cloth belts 663FC feature a waterproof YF-weight cloth backing, which means these belts can support high-pressure tough applications when run wet or dry. The abrasive side of the belt features three-dimensional structures derived from proprietary 3M technology. Unlike conventional abrasives, which are constructed from randomly-spaced and irregular-shaped minerals, Trizact abrasives feature precisely-shaped three-dimensional structures that help deliver more consistent performance and eliminate belt-to-belt variation.

Features:

  • Can cut hard to grind materials up to 70% faster than bonded wheels
  • Delivers consistent grinding performance while reducing the likelihood of grinding chatter
  • YF-weight backing supports medium to high pressure grinding applications
  • Great for stock removal

Product Specifications
Manufacturer Part Number7010360876
Overall Length (Inch)137.0"
Overall Length (mm)3479.8mm
Overall Width (Inch)4.0"
Overall Width (mm)101.6mm
Abrasive MaterialDiamond
ApplicationGrinding, Finishing
Backing MaterialCloth
Backing WeightYF Weight
Color FamilyGreen
For Use OnCast Iron
Micron Grade70 μm
SubstrateCast Iron
Product ColorGreen
Product FormBelt
Product Number663FC
Equipment - MachinesCylindrical Grinders
