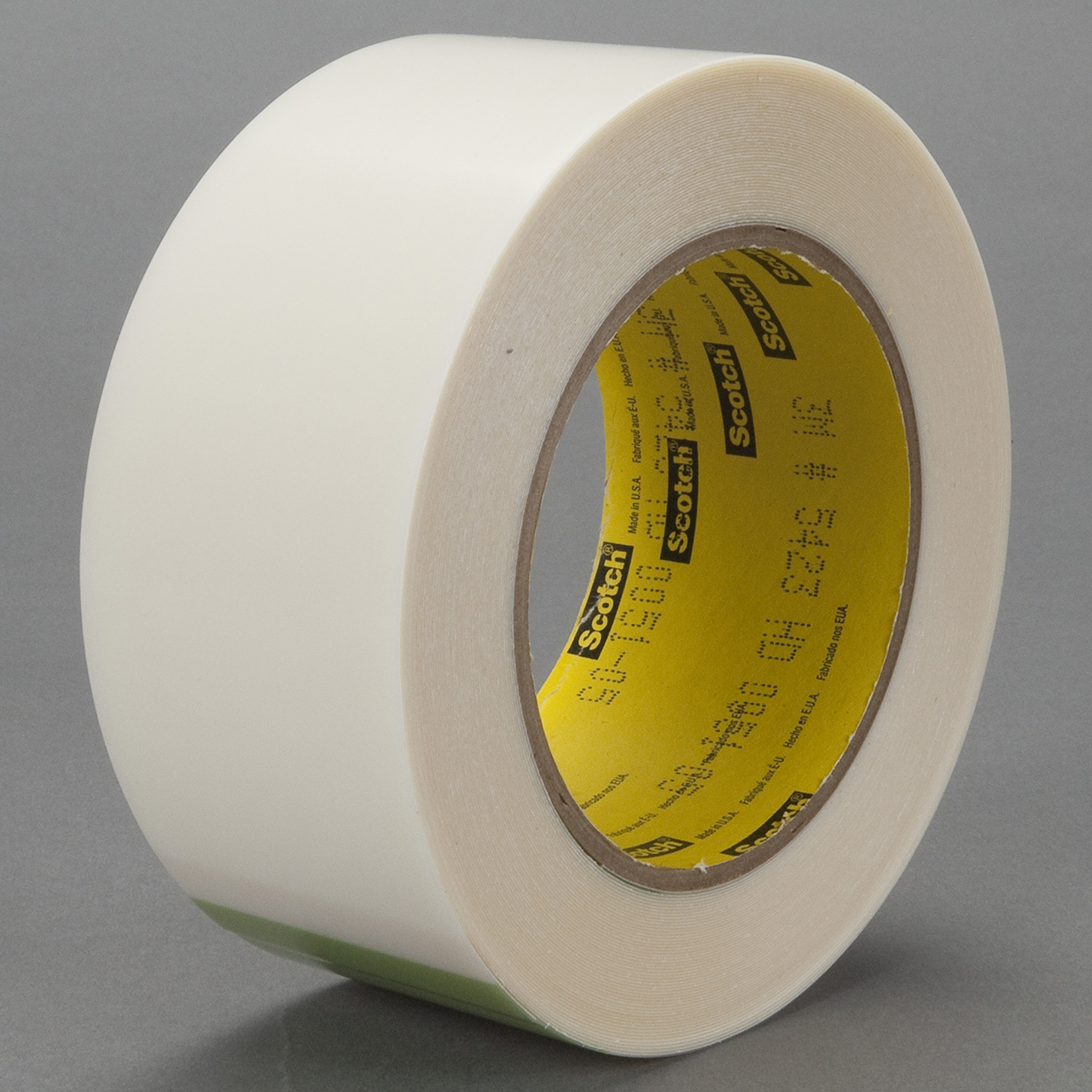

3M 7010374279 | 72 yd x 2.000" Width x 12.0 mil Thickness UHMW Tape

$897.91
Ships:
From Manufacturer
Brand:
3M
Length (yd):
72 yd
Width (Inch):
2"
Width (Decimal Inch):
2.0000"
Width (mm):
50.80mm
interval quantity:
12
Ships:
From Manufacturer
SKU:
96002664
UPC:
 00051138946876
Weight:
19.58 LBS
Minimum Purchase:
12 units
Shipping:
Free Shipping

3M UHMW-PE film tape 5423 is a thick, general-purpose polyethylene tape made for high-impact, abrasion, and sliding applications. Its UPMW-PE (ultra-high molecular weight polyethylene) thermoplastic backing enables its low-friction and resistance to chemicals, abrasion, and vibration in demanding situations. The exceptional hardness and slick surface is ideal for maintaining a gliding, 'slip-plane' effect and reducing noises like squeaks and rattles. Furthering its workability, 3M UHMW-PE film tape 5423 is mounted on a liner, allowing the user to die-cut shapes to exact specifications. Between its low-friction coefficient, built-in liner, and long-lasting protection, this slick-surfaced tape excels in the aerospace, automotive, printing, and MRO industries.

An Effective Solution for Many Noise and Vibration Problems
  • 3M UHMW-PE Film tape 5423 is often used in general industrial applications to help control squeaks and rattles due to vibration or wear of metal and plastic materials. This UHMW-PE (ultra-high molecular weight polyethylene) film tape provides good chemical resistance and excellent abrasion resistance that helps ensure a long wear life. 3M UHMW-PE film tape 5423 is mounted on a liner, making it easy to die-cut to meet the demands of specific applications. It is ideal for applications requiring a low coefficient of friction and the movement of parts and/or materials. This slick surface tape is primarily used in aerospace, automotive, printing and MRO industries.
The Science Behind the Tape
  • The effectiveness of 3M UHMW-PE film tape 5421 lies in its Ultra-High Molecular Weight polyethylene (UHMW-PE) backing. UHMW-PE is a thermoplastic that has a unique combination of properties, such as exceptional hardness and low surface energy. The ultra-high molecular weight of this tape significantly reduces friction to create an effective solution for anti-stick and easy-release requirements. The abrasion resistance of UHMW-PE is greater than PTFE and increases as the molecular weight increases. The extraordinary durability and versatility of UHMW-PE is used by designers and engineers in many industries worldwide. UHMW-PE based products offer a host of exceptional attributes that include high abrasion resistance, low coefficient of friction and one of the highest impact strength ratings of any thermoplastic. These attributes make them ideal for tough impact wear or sliding applications. The low coefficient of friction characteristic is surpassed only by PTFE; however, UHMW-PE tape has superior abrasion resistance.
Recommended Applications
  • Flat conveyor guide rails and chutes
  • Spray booth liners
  • Tank and bin liners
  • Drawer and cabinet slides
  • Protecting aluminum sheets on stretch forming presses
Features
  • Instantly protect surfaces: translucent, abrasion resistant backing protects surfaces from wear
  • Very low-friction: low coefficient of friction creates a 'slip plane' effect between surfaces
  • Powerful adhesive: rubber adhesive creates instant adhesion on countless surfaces
  • Reduce unwanted noise: can help reduce buzz, squeaks, rattles, and other noises that occur with movement
  • Make difficult surfaces slippery: great in applications where lubrication is not possible because of contamination
  • Built-in liner: the peel-off liner makes it ideal for fabricating or die-cutting into various part-specific lengths, shapes, and sizes
  • Potential applications: flat conveyor guide rails and chutes, spray booth liners, tank and bin liners, drawer and cabinet slides, protecting aluminum sheets on stretch forming presses
